Spawarka światłowodowa INNO View 6S + obcinarka z pojemnikiem V7+, zapasowa para elektrod, holdery SOC, akcesoria

Spawarka światłowodowa INNO View 6S + obcinarka z pojemnikiem V7+, zapasowa para elektrod, holdery SOC, akcesoria

Producent: INNO InstrumentDostępność: Dostępny

Kod produktu: XB-SF-VIEW6-V7+Zapytaj o produkt

15 097,82 zł z VAT
12 274,65 zł netto przechowalnia


Description




View 6S, a core-alignment fusion splicer with the world’s highest fiber image magnification rate, is the most dependable fusion splicer in the market. View 6S’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphical User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. View 6S offers maximum work efficiency through the fast heating time of 13s. View 6S brings satisfactory working experience to its users in FTTx field, which is compatible with being widely used fiber-optic cables, and short v-groove length makes the splicer capable of splicing 5mm cleave length suitable for splice-on connector. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 6S is the new industry standard of core-alignment splicer in the telecommunications industry.

Features



Core Alignment Splicing Method with DACAS (Digital Analysis Core Alignment System)
The World’s Highest Magnification and Resolution
5” High-Resolution Color LCD Touch Screen
User-friendly Smart GUI
Double Tap to Zoom in & out
Fast Heating Time
Short Cleave Length Splicing Capability
Detachable SOC Holder and Heating Oven
High Capacity Battery
3 Bright LEDs and Illuminated Keypads For Dark Environment
Ceramic Clamp for Improved Durability
Easy to Replace Electrodes
Protective Cover
Harsh Weather Conditions Adaptability
2.07kg weight (without battery)


    Display



      5” High-Resolution Color LCD Touch Screen
      The View series certainly outdoes the other splicers’ viewing experience.
      Measuring a vast 5 inches across, the color LCD display has the highest resolution of 800 x 480 with very wide viewing angles.



    Magnification


    Double Tap to Zoom in  out
    By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 520X.
    So INNO Instrument achieves that fiber condition can be easily inspected with unaided eyes.


    Interface



    User-friendly Smart GUI
    The advanced splicing functionality is available through clear options in tile-based design, so experts and even novices can understand its operation without assistance or special training.


    Heating Performance



    Fast Heating Time of 13 sec
    View  6s has significantly increased the speed of heating to 13 sec, which delivers maximum work efficiency.

    SOC Compatibility



    Detachable SOC Holder and Heating Oven
    View 6s’s SOC compatibility with Detachable SOC holder and heating oven delivers satisfactory experiences to users in FTTx field.


    Battery



      170 Times (Splice & Heat).
      The battery capacity is 4200mAH. Also, the battery life will be demonstrated via 5 stage of battery indicator


    LED light


    3 Bright LEDs For Dark Environment
    Even in a dark environment, the industry’s first 3 LEDs are just bright enough to cast a light on the fiber holders as well as the splice point.


    Clamp



    Ceramic Clamp for Improved Durability
    Ceramic-made fiber clamp can secure the durability of stripped fiber by minimizing the damage on the fiber surface.

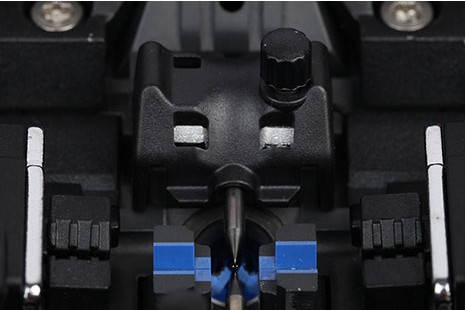

    Electrode Cover



    User-friendly Electrode Cover
    Specially designed electrode covers make users replace electrodes in a much easier and faster way without any tools.

    Dimensions


    Height: 5.98 inches (152 mm)
    Width: 5.78 inches (147 mm)
    Depth: 6.88 inches (175 mm)








    BROCHURE :        View Series Splicers Comparison :





    CERTIFICATE OF DISTRIBUTION:


    Specifications


    ModelView 6S
    Dimension143H x 130W x 155D mm (excluding rubber bumper) / 152H x 147W x 175D mm (including rubber bumper)
    Weight2.43KG (wiith battery) / 2.07KG (withoutbattery)
    Number of FiberSingle
    Applicable FibersSM(ITU-TG.652&G.657) / MM(ITU-TG.651) / DS(ITU-T G.653) / NZDS(ITU-Tg.655)
    Compatible FIber/ Cable0.25 ~ 3.0mm / Indoor Cable
    Cleaved LenghtDiameter :0.125 ~ 1mm / Cleave Lenght : 5~ 16mm
    Cladding Diameter80~ 150μm
    Splicing ModePreset 7 modes / Max 128 modes
    Heating ModePreset 5 modes / Max 32 modes
    Typical Splice LossSM :0.02dB / MM: 0.01dB / DS: 0.04dB /NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)
    Return Loss>>60dB
    Lighting    3 White LEDs
    Splicing TimeAuto mode : 9 sec / Quick mode : 7 sec
    Estimated SpliceLossAvailable
    Protection Sleeve Lenght20~ 60mm
    Heating TimeFP-03 typical heating time : 13 sec
    Results StorageThe last 2000 results
    Tension Test1.96 ~ 2.25N
    Operation ConditionOperation Altitude: 0~5000m above sealevel, 0~95% relative humidity,-10~50°C, Max Wind 15m/s
    Storage Condition0~95% relative humidity, -40~80°C
    Display90° bi-directional view, 5.0"Color High Resolution Display
    Fiber View & MagnificationX, Y, XY, X/Y : 520 Magnification
    Power SupplyAC Input 100-240V, DC input 9-14V
    No.of Splice / Heating with Battery4200mAh Battery Capacity, Typical 170 times (Splice+Heat)
    Operating MethodsButton / Touch screen
    Automatic CalibrationAutomatic arc calibration by air pressureand temperature
    Electrode Life3500 arcs, can be extended by using an electrode grinder
    Terminal    USB2.0 /  MINI USB


      Package


      		Model NO.QTY.
      Fusion SplicerView 6S1
      High Precison Cleaver        V7+1
      Fiber HolderVFH-40s(equipped) / FH-SOC         1
      AC AdapterJS-1803001
      Cooling TrayCG-221
      ElectrodeE-501
      Battery PackLBT-401
      Power CableACC-251
      Carrying CaseNBX-351
      Cigarette Lighter CableCJ-111
      MiniUsb Data Cable-1




    Rozszerzona 3-letnia gwarancja dotyczy samej spawarki jako urządzenia, na pozostałe elementy zestawu takie jak gilotynka i bateria obowiązuje 12 miesięczny okres gwarancji (1 rok). (Extended 3-year warranty period is only for a fusion splicer itself, for other package elements like cleaver and battery there is a 1-year warranty period)

    Rabaty przyznawane automatycznie na cały asortyment sklepu, w odniesieniu do spawarek nie mają zastosowania w pełnej wysokości (Discounts, which are counted automatically on the entire store offer, aren't entitled for fusion splicers, in their full value)
