Spawarka światłowodowa INNO View 5 + obcinarka V7

Description

View 5, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most dependable fusion splicer in the market. View 5’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. Also View 5’s compatibility with SOC (Splice-On-Connectors) will bring satisfactory experiences to users in FTTx field. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 5 is the new industry standard of core-alignment splicer in the telecommunications industry.

Features

3 Bright LEDs for dark environment

Ceramic Clamp - Improved durability

Detachable heat oven for SOC

Easy to replace electrodes

Changeable holder for multi-functional splicing

5” Touch Screen with Smart GUI

The Highest 520X magnification

Double Tap to Zoom in & out

LCD Monitor

5” Touch Screen with Smart GUI

The Highest 520X magnification

Double Tapping

Double%20Tapping

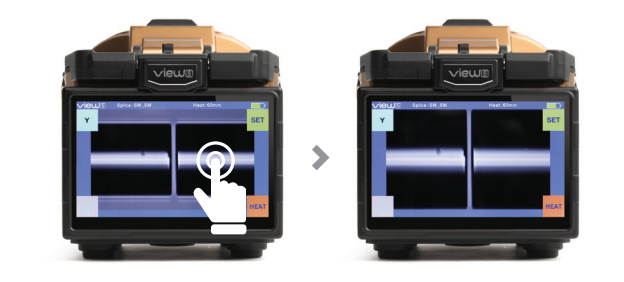

By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 520x. Fiber condition can be easily checked with unaided eyes.

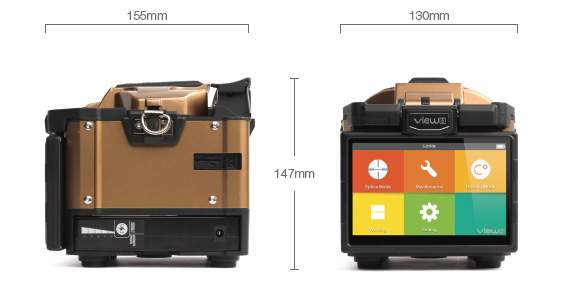

Weight and Dimensions

Height: 5.78 inches (147 mm)
Width: 5.11 inches (130 mm)
Depth: 6.10 inches (155 mm)
Weight: 4 pounds (1.85 kg without battery)

Battery

battery

170 Times (Splice & Heat)

The battery capacity is 4200mAH. Also, the battery life will be demonstrated via 5 stage of battery indicator

Heat oven

Heating oven with a zoom window

After splicing, it is clear to figure out sleeve processing. View 5 heat oven has a magnifying glass. Users can easily check the sleeve via magnifying glass window.

Clamp

Independent clamp motion

Both clamps are independent to adjust each other. If the clamp needs to be replaced, it can change one clamp not both.

LED light

3 Bright LED For Dark Environment.

LED light is enough bright to work in dark place. Users can find out thin optical fiber during working in dark environment.

Down%20side

waterproof dustproof AntiShock

BROCHURE : USER MANUAL : Core Splicers Comparison : View Series Splicers Comparison :

CERTIFICATE OF DISTRIBUTION:

Specifications

Model	View 5
Dimension	147H x 130W x155D mm
Weight	2.21KG (wiith battery) / 1.85KG (withoutbattery)
Number of Fiber	Single
Applicable Fibers	SM(ITU-TG.652&G.657) / MM(ITU-TG.651) / DS(ITU-T G.653) / NZDS(ITU-Tg.655)
Compatible FIber/ Cable	0.25 ~ 3.0mm / Indoor Cable
Cleaved Lenght	Diameter :0.125 ~ 1mm / Cleave Lenght : 8~ 16mm
Cladding Diameter	80~ 150μm
Splicing Mode	Preset 17 modes / Max 128 modes
Heating Mode	Preset 6 modes / Max 32 modes
Typical Splice Loss	SM :0.02dB / MM: 0.01dB / DS: 0.04dB /NZDS: 0.04dB / G.657: 0.02dB(ITU-T Standard)
Return Loss	>>60dB
Lighting	3 White LEDs
Splicing Time	Auto mode : 9 sec / Quick mode : 7 sec
Estimated SpliceLoss	Available
Protection Sleeve Lenght	20~ 60mm
Heating Time	FP-03 typical heating time : 30 sec
Results Storage	The last 2000 results
Tension Test	1.96 ~ 2.25N
Operation Condition	Operation Altitude: 0~5000m above sealevel, 0~95% relative humidity,-10~50°C, Max Wind 15m/s
Storage Condition	0~95%relative humidity, -40~80°C
Display	90° bi-directional view, 5.0"Color High Resolution Display
Fiber View & Magnification	X, Y, XY, X/Y : 520 Magnification
Power Supply	AC Input 100-240V, DC input 9-14V
No.of Splice / Heating with Battery	4200mAh Battery Capacity, Typical 170times (Splice+Heat)
Operating Methods	Button / Touch screen
Automatic Calibration	Automatic arc calibration by air pressureand temperature
Electrode Life	3500 arcs, can be extended by using anelectrode grinder
Terminal	USB2.0 / MINI USB

Package

	Model NO.	QTY.
Fusion Splicer	View 5	1
High Precison Cleaver	V7	1
Fiber Holder	VFH-40 / FH-SOC	1
AC Adapter	JS-180300	1
Cooling Tray	CG-22	1
Electrode	E-50	1
Battery Pack	LBT-40	1
Power Cable	ACC-25	1
Carrying Case	NBX-35	1
Cigarette Lighter Cable	CJ-11	1
Electrode Grinder	-	1
MiniUsb Data Cable	-	1

Rozszerzona 3-letnia gwarancja dotyczy samej spawarki jako urządzenia, na pozostałe elementy zestawu takie jak gilotynka i bateria obowiązuje 12 miesięczny okres gwarancji (1 rok). (Extended 3-year warranty period is only for a fusion splicer itself, for other package elements like cleaver and battery there is a 1-year warranty period)

Rabaty przyznawane automatycznie na cały asortyment sklepu, w odniesieniu do spawarek nie mają zastosowania w pełnej wysokości (Discounts, which are counted automatically on the entire store offer, aren't entitled for fusion splicers, in their full value)

Specyfikacja

Specyfikacja
Producent	INNO Instrument
