Extreme Networks Summit 7520-48XT-6C-AC-F Switch

Extreme Networks Summit 7520-48XT-6C-AC-F is an advanced enterprise-class network switch designed for aggregation and core applications in modern, high-performance IT infrastructures. The device offers high port density and support for demanding environments generating heavy traffic, typical for data centers and large campus networks.

The 7520-48XT-6C-AC-F model is equipped with 48 × 1Gb/10Gb 10GBase-T RJ45 ports and 6 × QSFP28 40/100GbE ports, enabling support for high-traffic environments and providing flexibility in building scalable, high-throughput networks.

The device belongs to the Universal Hardware platform, allowing the choice of operating system - including the vendor’s flagship solutions - and the use of a unified licensing model. Advanced network segmentation and security policy features enable the creation of secure and flexible network environments.

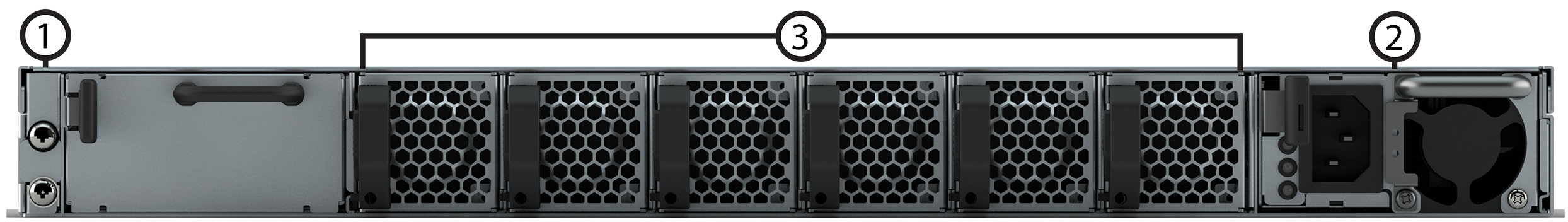

The switch offers extensive management options, including an RJ-45 console port, a 10/100/1000 Mb/s OOB management port for out-of-band communication, and a USB Type-A port for external storage. This enables both local and remote device administration.

This model is equipped with two 800W AC power supplies and six fan modules with front-to-back airflow. All components are hot-swappable, ensuring high availability and operational continuity. Additionally, the device supports various cooling options and redundant power supply, increasing reliability in critical environments.
