Extreme Networks Summit 7520-48Y-8C-AC-F Switch

Extreme Networks Summit 7520-48Y-8C-AC-F is an advanced enterprise-class network switch designed for aggregation and core applications in modern, high-performance IT infrastructures. The device offers high port density and support for demanding environments generating intensive traffic, typical of data centers and large campus networks.

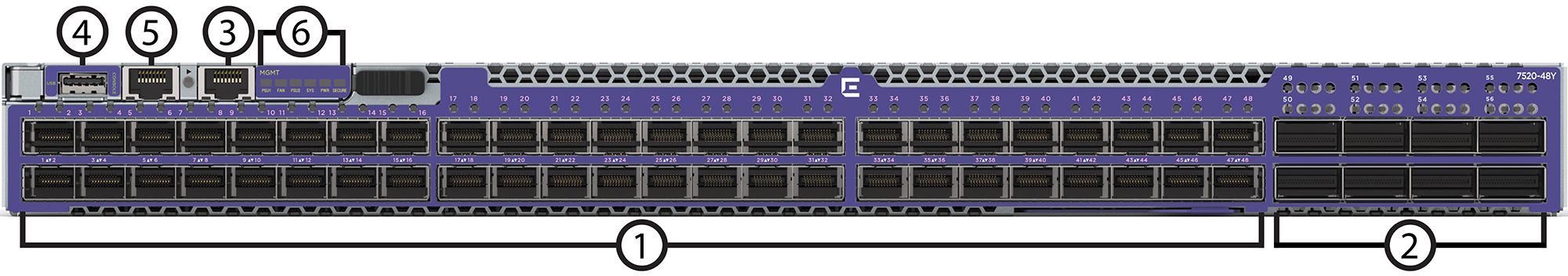

The 7520-48Y-8C-AC-F model is equipped with 48 SFP28 ports supporting speeds of 1/10/25 Gb/s and 8 QSFP28 ports with bandwidth of 40/100 Gb/s, providing flexibility in building scalable, high-throughput networks. Thanks to its scale-out architecture and high energy efficiency, the switch is an optimal solution in terms of cost, power consumption, and rack space utilization.

The device belongs to the Universal Hardware platform, which allows the selection of the operating system - including the manufacturer’s flagship solutions - and the use of a unified licensing model. Advanced network segmentation and security policy features enable the creation of secure and flexible network environments.

The switch offers extensive management options, including an RJ-45 console port, an OOB 10/100/1000 Mb/s management port for out-of-band communication, and a USB Type-A port for external media. This enables both local and remote device administration.

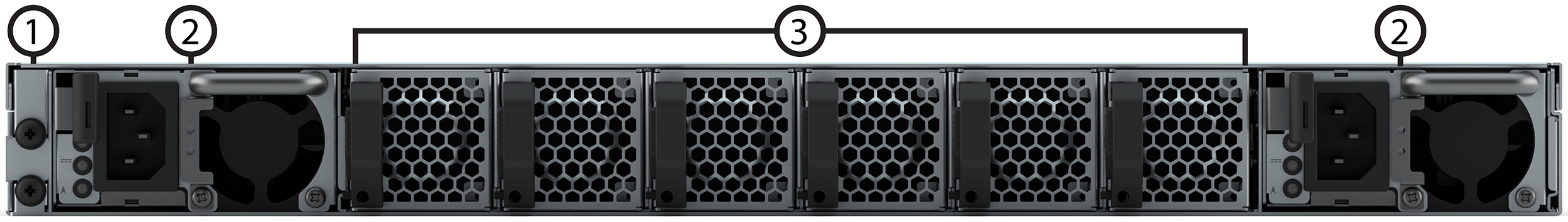

This model is factory-equipped with two 800 W AC power supplies and six fan modules with front-to-back airflow. All components are hot-swappable, ensuring high availability and uninterrupted system operation. Additionally, the device supports various cooling options and redundant power configurations, increasing reliability in mission-critical environments.
