EYDFA WDM XGPON Vision GA5839B-P 1x032-SA-D/22-M00

The EYDFA WDM XGPON Vision GA5839B-P 1x032-SA-D/22-M00 is an advanced EYDFA optical amplifier with WDM/FWDM functionality, designed for use in modern FTTH fiber optic networks and XG-PON and GPON infrastructures. The device belongs to the GA series and offers high performance and reliability in optical signal distribution, including CATV services.

This model operates in the 1550 nm band (range 1540–1563 nm), providing a total output power of up to 39 dBm (8000 mW) thanks to a high-quality laser (JDSU). With FWDM technology, simultaneous transmission of GPON, XG-PON, and CATV signals over a single optical fiber is possible.

The device is equipped with 32 SC/APC output ports (COM) with 21 dBm per port, enabling efficient signal distribution to multiple users. It features a single CATV input (SC/APC) and an OLT input in SC/UPC standard, compatible with both GPON (TX 1490 nm / RX 1310 nm) and XG-PON (TX 1577 nm / RX 1270 nm).

Thanks to output power adjustment (range up to -4 dBm), users can precisely tailor operating parameters to network requirements. The 2U rackmount enclosure allows convenient installation in telecom cabinets.

The amplifier is equipped with a dual power supply (230V AC/230V AC), significantly increasing reliability and ensuring continuous operation in case one power module fails. The device also supports SNMP management for remote monitoring and configuration.

The GA5839B-P model in M00 version does not include output port monitoring functionality.

Key features:

• EYDFA + WDM/FWDM technology for GPON/XG-PON and CATV networks

• High total output power: 39 dBm (8000 mW)

• 32 SC/APC output ports (21 dBm per port)

• CATV band: 1540–1563 nm (1550 nm)

• Support for GPON and XG-PON (1490/1310 nm and 1577/1270 nm)

• Adjustable output power

• Dual 230V AC power supply (redundancy)

• 2U rackmount design

• SNMP management

• No output port monitoring.

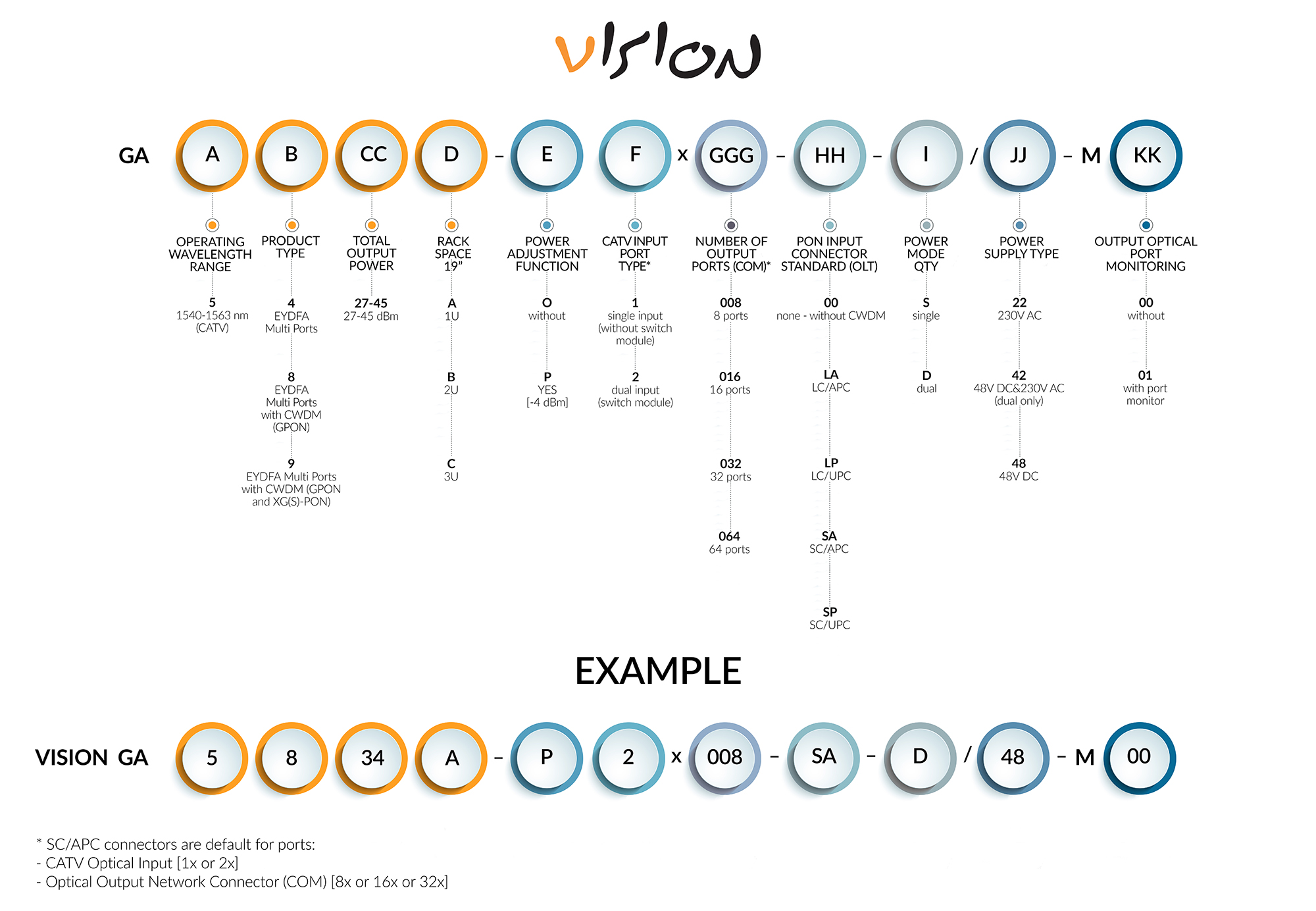

EYDFA Vision device naming scheme
