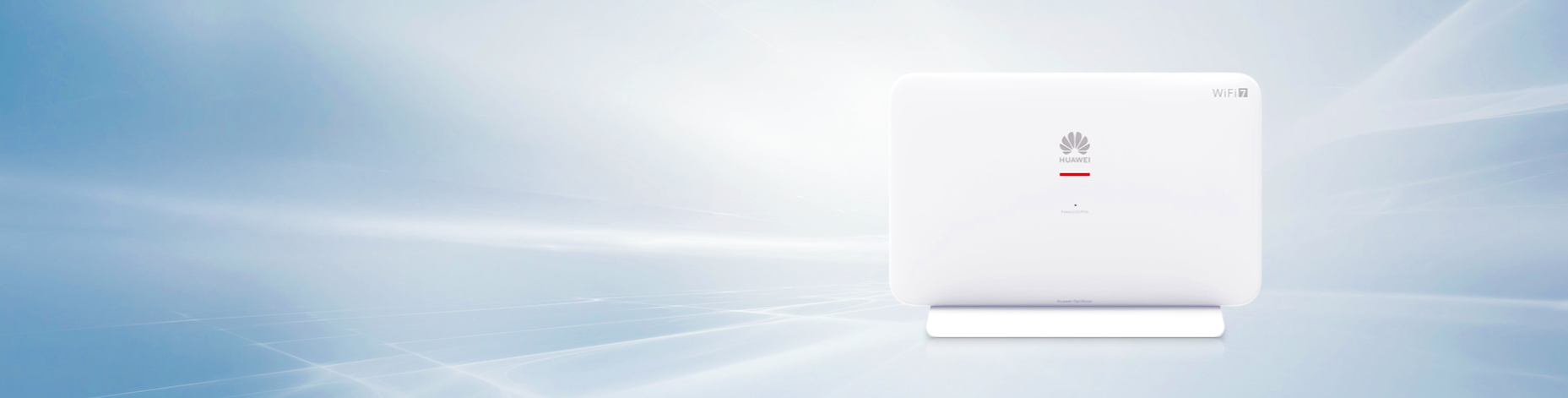

Huawei ONT XGS-PON EN8145B7Ns (1x2.5GE, 3xGE, WiFi-BE) (SC/APC)

Huawei OptiXstar EN8145B7Ns is a modern ONT client terminal designed for XGS-PON networks, offering symmetrical data transmission speeds of up to 10 Gbps and Wi-Fi 7 (BE3600) wireless connectivity. The device is designed for FTTH operators and users requiring the highest performance from both wired and wireless networks. Combining one 2.5 Gigabit Ethernet port, three Gigabit Ethernet ports, and advanced Wi-Fi 7 features, the terminal provides stable Internet access, VoIP, IPTV services, and support for bandwidth-intensive applications.

The EN8145B7Ns features an SC/APC optical connector and supports the XGS-PON N1/N2 standard, ensuring high-quality transmission and enabling the deployment of future-ready fiber optic networks capable of meeting increasing bandwidth demands.

Huawei EN8145B7Ns is equipped with an XGS-PON interface, delivering 9.953 Gbps transmission speeds in both downstream and upstream directions. Compared to traditional GPON technology, XGS-PON provides significantly higher bandwidth and allows more subscribers to be served from a single OLT port, making it an ideal solution for modern FTTH deployments and high-performance networking environments.

The terminal supports OMCI authentication, FEC, SR-DBA, NSR-DBA, and flexible GEM Port and TCONT mapping, ensuring reliable and stable data transmission.

Huawei OptiXstar EN8145B7Ns supports the latest Wi-Fi 7 (IEEE 802.11be) standard, delivering substantially higher throughput and lower latency than previous Wi-Fi generations.

The device provides:

• Up to 688 Mbps on the 2.4 GHz band
• Up to 2,882 Mbps on the 5 GHz band

Combined, the BE3600 standard delivers outstanding wireless performance for multiple simultaneously connected devices.

Advanced technologies including MLO (Multi-Link Operation), Multi-RU, MU-MIMO, 4096-QAM, and 160 MHz channels improve network capacity, reduce latency, and enhance connection stability during 4K/8K video streaming, online gaming, remote work, and cloud applications.

The terminal includes:

• 1 × 2.5 Gigabit Ethernet port with auto-negotiation (10/100/1000/2500 Mbps)
• 3 × Gigabit Ethernet ports
• 1 × POTS (RJ11) port for analog telephony and VoIP
• 1 × USB 2.0 port for sharing files, printers, or network storage.

The 2.5GE port enables service providers to offer Internet services exceeding 1 Gbps without the limitations of standard Gigabit Ethernet interfaces.

Huawei EN8145B7Ns offers numerous features that improve user experience and simplify network management:

• Intelligent Wi-Fi coverage
• Wireless network scheduling
• Parental controls
• Multiple SSIDs
• Portal authentication and IEEE 802.1X
• IPTV support
• Service quality diagnostics
• Automatic Wi-Fi optimization
• Interference detection and wireless roaming

Advanced QoS mechanisms prioritize network traffic to ensure smooth operation of latency-sensitive applications.

The terminal also supports comprehensive security features, including:

• SPI Firewall
• DoS attack protection
• MAC, IP, and URL filtering
• WPA3, WPA2, and WPA Wi-Fi security
• NAT, NAPT, ALG, UPnP
• DDNS
• IPv4/IPv6 Dual Stack
• TR-069
• OMCI
• Web-based management interface.

Key Features:

• XGS-PON ONT terminal with symmetrical 10 Gbps throughput

• SC/APC optical connector

• 1 × 2.5GE port and 3 × Gigabit Ethernet ports

• 1 × POTS (RJ11) port for VoIP services

• 1 × USB 2.0 port for file, printer, or network storage sharing

• Dual-band Wi-Fi 7 BE3600 (2.4 GHz & 5 GHz)

• Support for 2×2 MIMO, MU-MIMO, 4096-QAM, 160 MHz channels, MLO (Multi-Link Operation), and Multi-RU

• Advanced security, QoS, IPv4/IPv6 Dual Stack, and management via OMCI, Web, and TR-069.

Applications:

• XGS-PON FTTH networks

• Modern telecommunications operator networks

• Homes and apartments with Internet speeds above 1 Gbps

• Smart Home environments

• Remote work and video conferencing

• IPTV and 4K/8K streaming

• Online gaming

• SOHO offices and environments requiring a stable, high-speed, and secure network.
