Fusion Splicer INNO M7 + V7+ cleaver, spare electrodes, SOC holders & accessories
In stock
SKU
XB-SF-M7-V7+
€2,062.98 net
€2,537.47 Incl. VAT 23%
INNO M7 Fiber Optic Fusion Splicer - a handy fiber optic fusion splicer with jacket centering option. It features a 4.3-inch high-resolution color LCD display with an intuitive Graphic User Interface (GUI), providing a large and clear fiber image. By double-tapping the screen, the user can zoom in and out up to 400 times. Moreover, the splicer is equipped with an adjustable strap, which greatly facilitates work with the device.
Product Features and Functions:
- Fiber optic splicer with jacket centering option and active V-groove system
- Lightweight and compact design
- Adjustable carrying strap
- 400× magnification and high resolution
- 4.3-inch color LCD touchscreen
- 3000mAh battery allowing up to 110 fusion/splicing cycles
- 4-level battery indicator
- Fiber view during splicing
- Independent clamp movement (individual clamp replacement possible)
- Resistant to water, dust, and shocks, allowing operation even in harsh environments.

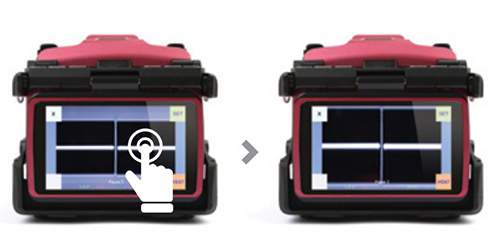

Easy fiber inspection: by double-tapping the screen,
the user can magnify the fiber image up to 400×.

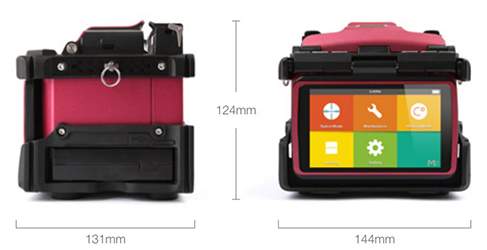

Height: 124 mm
Width: 144 mm
Depth: 131 mm
Weight: 1.56 kg (1.31 kg without battery)
Technical Specifications
| Model | M7 |
| Dimensions H×W×D [mm] | 124 × 144 × 131 (with rubber cover) |
| Weight [kg] | 1.70 (with battery) |
| 1.45 (without battery) | |
| Fiber count | Single |
| Fiber types | SM (ITU-T G.652 & G.657) |
| MM (ITU-T G.651) | |
| DS (ITU-T G.653) | |
| NZDS (ITU-T G.655) | |
| Compatible fibers/cables | 0.25~3.0 mm |
| Indoor cable | |
| Cleave length | 10~16 mm |
| Cladding diameter | 80~150 μm |
| Splicing modes | Up to 100 modes, 7 preset |
| Heating modes | Up to 30 modes, 3 preset |
| Splice loss [dB] | SM: 0.03 |
| MM: 0.02 | |
| DS: 0.05 | |
| NZDS: 0.05 | |
| G.657: 0.03 | |
| Measurement method "cut-back" per ITU-T standard | |
| Return loss [dB] | ≥60 |
| Illumination | 2 white LEDs |
| Splicing time | 12 s |
| Estimated splice loss | Available |
| Splice protection sleeve length | 20~60 mm |
| Heating time | 20 s |
| Storage | Last 10,000 results |
| Tension test [N] | 1.96~2.25 |
| Operating conditions | Altitude: 0–5000 m |
| Humidity: 0~95% | |
| Temperature: -10 - 50°C | |
| Max wind: 15 m/s | |
| Storage conditions | Humidity: 0 - 95% |
| Temp: splicer -20 - 60°C, battery -20 - 30°C | |
| Display | Dual-view 90° |
| 4.3” color high-resolution LCD | |
| Fiber view & magnification | 300× with 3 display modes |
| 400× partial magnification | |
| Power supply | AC input 100-240V |
| DC input 9-14V | |
| Battery | 3000 mAh (~110 splices) |
| Operation | Buttons + touchscreen |
| Auto calibration | Arc calibration based on air pressure & temperature |
| Electrode life | 5500 arcs (extendable with grinder) |
| Interface | USB Type-C |
Package Contents
| Model | Quantity | |
| Spliver | M7 | 1 |
| Cleaver | V7+ | 1 |
| Fiber holders |
FH-40 (mounted) | 1 pair |
| FH-250 | 1 pair | |
| FH-900 | 1 pair | |
| SOC holders |
FH-SOC/FH-SC + SOC oven holder |
1 set |
| Power adapter | JS-1618 | 1 |
| Cooling tray | CG-22 | 1 |
| Extra electrode pair | E-50/E-27 | 1 pair |
| Battery | LBT-3000 (3000mAh) | 1 |
| Power cable | ACC-25 | 1 |
| Carrying case | NBX-M05 | 1 |
| USB cable | CTA-01 | 1 |
Brochure:
Certificate:
| Producent | INNO Instrument |
|---|---|
| Czas spawania [s] | 12s |
| Czas zgrzewania [s] | 13s |
| Ilość silników wyrównujących | 6 sztuk |
| Maksymalne powiększenie | 400x |
| Pojemność baterii [mAh] | 3000mAh |
| Rodzaj centrowania | Centrowanie do płaszcza |
| Rozmiar wyświetlacza ["] | 4.3" |
| Średnia strata spawu [dB] | 0.02dB |
