Fusion splicer INNO View 1 + cleaver V7, spare electrodes, SOC holders, accessories
On demand
SKU
XB-SF-VIEW1-V7
€2,799.59 net
€3,443.50 Incl. VAT 23%
Description
View 1, an active clad-alignment splicer with amazingly compact design, is the most dependable fusion splicer in the market. View 1’s 4.3 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can Zoom In & Out the image to the world’s highest magnification of 520x. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 1 is the new industry standard of compact active clad-alignment splicer in the telecommunications industry.
Features
Active V-Groove Clad Alignment Splicing Method
Light Weight and Handy Size
The Highest Magnefication and Resolution
4.3" Color LCD Touch Screen
Double Tapping (zoom in & out)
Detachable SOC Holder and Heating Oven
Light Weight and Handy Size
The Highest Magnefication and Resolution
4.3" Color LCD Touch Screen
Double Tapping (zoom in & out)
Detachable SOC Holder and Heating Oven
Truly Compact
Display
4.3” High-Resolution Color LCD Touch Screen
The View series certainly outdoes the other splicers’ viewing experience.
The color LCD display has the hight resolution, with very wide viewing angles.
Magnification

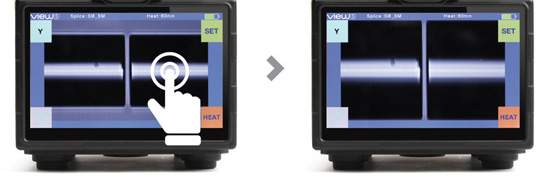

Double Tap to Zoom in out
By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 520X.
So INNO Instrument achieves that fiber condition can be easily inspected with unaided eyes.
By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 520X.
So INNO Instrument achieves that fiber condition can be easily inspected with unaided eyes.
Interface
Interface
User-friendly Smart GUI
The advanced splicing functionality is available through clear options in tile-based design, so experts and even novices can understand its operation without assistance or special training.
Heating Performance
Fast Heating Time of 13 sec
View 1 has significantly increased the speed of heating to 13 sec, which delivers maximum work efficiency.
SOC Compatibility
Detachable SOC Holder and Heating Oven
View 1 SOC compatibility with Detachable SOC holder and heating oven delivers satisfactory experiences to users in FTTx field.
Battery
140 Times (Splice & Heat).
The battery capacity is 3800mAH. Also, the battery life will be demonstrated via 5 stage of battery indicator
LED light
3 Bright LEDs For Dark Environment
Even in a dark environment, the industry’s first 3 LEDs are just bright enough to cast a light on the fiber holders as well as the splice point.
Even in a dark environment, the industry’s first 3 LEDs are just bright enough to cast a light on the fiber holders as well as the splice point.
Clamp
Ceramic Clamp for Improved Durability
Ceramic-made fiber clamp can secure the durability of stripped fiber by minimizing the damage on the fiber surface.
Electrode Cover
User-friendly Electrode Cover
Specially designed electrode covers make users replace electrodes in a much easier and faster way without any tools.

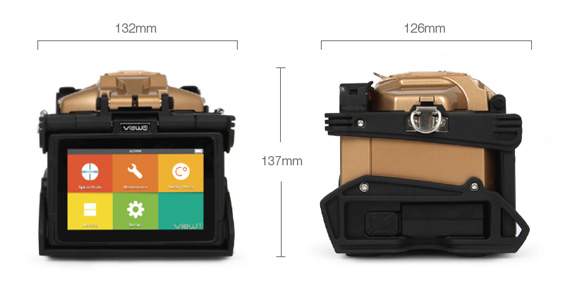

Dimensions
Height: 5.39 inches (137 mm)
Width: 5.19 inches (132 mm)
Depth: 4.96 inches (126 mm)
Weight: 3.19 pounds (1.45kg without battery)
BROCHURE :
CERTIFICATE OF DISTRIBUTION:
Specifications
| Model | View 1 |
| Dimensions H×W×D [mm] | 137 × 132 × 126 (including rubber bumper) |
| Weight [kg] | 1.70 (with battery) 1.45 (without battery) |
| Number of fibres | Single |
| Applicable fibres | SM (ITU-T G.652 & G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655) |
| Compatible fibre / cable | 0.25~3.0mm Indoor cable |
| Cleaved length | Diameter: 0.125~1mm Cleave length: 8~16mm |
| Cladding diameter | 80~150μm |
| Splicing mode | Max 120 modes |
| Heating mode | Max 33 modes |
| Typical splice loss [dB] | SM: 0.03 MM: 0.02 DS: 0.05 NZDS: 0.05 G.657: 0.03 (ITU-T Standard) |
| Return loss [dB] | ≥60 |
| Lighting | 3 White LEDs |
| Splicing time | Quick mode: 7 sec SM mode: 9 sec |
| Estimated splice loss | Available |
| Protection sleeve length | 20~60mm |
| Heating time | Typical heating time: 13 sec |
| Results storage | The last 2000 results |
| Tension test [N] | 1.96~2.25 |
| Operating condition | Operation altitude: 0~5000m Relative humidity: 0~95% Temperature: -10~50°C Max Wind: 15m/s |
| Storage condition | Relative humidity: 0~95% Temperature: -40~80°C |
| Display | 90° bi-directional view 4.3" Color High Resolution Display |
| Fibre view & magnification | X, Y, XY, X/Y: 520 Magnification |
| Power supply | AC input 100-240V DC input 9-14V |
| Battery capacity | 3800mAh battery capacity, typical 140 times (Splice+Heat) |
| Operating methods | Buttons, touch screen |
| Automatic calibration | Automatic arc calibration by air pressure and temperature |
| Electrode life | 3500 arcs, can be extended by using an electrode grinder |
| Terminal | Micro HDMI |
Package
| Model | Qty. | |
| Fusion splicer | View 1 | 1 |
| High precision cleaver | V7 | 1 |
| Fibre holders | VFH-40 (equipped) | 1 pair |
| SOC holders | FH-SOC/FH-SC (uchwyt do spawania SOC) + uchwyt SOC do piecyka | 1 set |
| AC adapter | JS-1618 | 1 |
| Cooling tray | CG-22 | 1 |
| Additonal pair of electrodes | E-50/E-27 | 1 set |
| Battery pack | FFLBT-50 (3800mAh) | 1 |
| Power cable | ACC-25 | 1 |
| Carrying case | CJ-11 | 1 |
| USB cable | HDMI-15 | 1 |
Extended 3-year warranty period is only for a fusion splicer itself, for other package elements like cleaver and battery there is a 1-year warranty period
Discounts, which are counted automatically on the entire store offer, aren't entitled for fusion splicers, in their full value
| Producent | INNO Instrument |
|---|---|
| Czas spawania [s] | 7s |
| Czas zgrzewania [s] | 13s |
| Ilość silników wyrównujących | 6 sztuk |
| Maksymalne powiększenie | 520x |
| Pojemność baterii [mAh] | 3800mAh |
| Rodzaj centrowania | Centrowanie do płaszcza |
| Rozmiar wyświetlacza ["] | 4.3" |
| Średnia strata spawu [dB] | 0.02dB |
