Fusion Splicer INNO View 7 + V7+ cleaver, grinder, spare electrodes, SOC holders & accessories

Description

View 7, a core-alignment splicer with the world’s highest fiber image magnification rate, is the most powerful and innovative fusion splicer in the market. View 7’s 5 inch high-resolution color LCD touch screen with user-friendly intuitive GUI (Graphic User Interface) offers large and clear fiber images to users. By double-tapping the screen, users can zoom in & out the image to the world’s highest magnification of 520x. View 7 offers maximum work efficiency through the fast heating time of 13s and the ultra-high battery capacity of 355 splice/heat cycles. Moreover, the 3 LED lights provide bright splice condition to the users working under dark environments. View 7 offers the most reliable work experiences to our valuable customers.

Features

Core Alignment Splicing Method with DACAS (Digital Analysis Core Alignment System)
The World’s Highest Magnification and Resolution
5” High-Resolution Color LCD Touch Screen
User-friendly Smart GUI
Double Tap to Zoom in out
Fast Heating Time
Ultra-high Capacity Battery
Detachable SOC Holder and Heating Oven
3 Bright LEDs and Illuminated Keypads For Dark Environment
Ceramic Clamp for Improved Durability
Easy to Replace Electrodes
Protective Cover
Harsh Weather Conditions Adaptability
2.17kg weight (without battery)

Display

5” High-Resolution Color LCD Touch Screen
The View series certainly outdoes the other splicers’ viewing experience.
Measuring a vast 5 inches across, the color LCD display has the highest resolution of 800 x 480 with very wide viewing angles.

Magnification

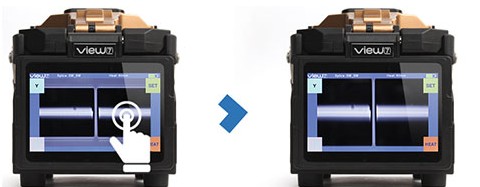

Double Tap to Zoom in out
By double-tapping the screen, users can zoom in the fiber image to the industry’s highest magnification of 520X.
So INNO Instrument achieves that fiber condition can be easily inspected with unaided eyes.

Interface

User-friendly Smart GUI
The advanced splicing functionality is available through clear options in tile-based design, so experts and even novices can understand its operation without assistance or special training.

Heating Performance

Fast Heating Time of 13 sec
View 7 has significantly increased the speed of heating to 13 sec, which delivers maximum work efficiency.

SOC Compatibility

Detachable SOC Holder and Heating Oven
View 7’s SOC compatibility with Detachable SOC holder and heating oven delivers satisfactory experiences to users in FTTx field.

Battery

Ultra-high Capacity Battery
Ultra-high capacity battery provides all-day power for working even further in the field, which is the industry’s highest 355 splicing/heating cycles by 9000mAh.

LED light

3 Bright LEDs For Dark Environment
Even in a dark environment, the industry’s first 3 LEDs are just bright enough to cast a light on the fiber holders as well as the splice point.

Clamp

Ceramic Clamp for Improved Durability
Ceramic-made fiber clamp can secure the durability of stripped fiber by minimizing the damage on the fiber surface.

Electrode Cover

User-friendly Electrode Cover
Specially designed electrode covers make users replace electrodes in a much easier and faster way without any tools.

BROCHURE : USER MANUAL : View Series Splicers Comparison : Core Splicers Comparison :

CERTIFICATE OF DISTRIBUTION:

Specifications

Model	View 7
Dimensions H×W×D [mm]	160 × 133 × 155 (excluding rubber bumper) 167 × 143 × 163 (including rubber bumper)
Weight [kg]	2.80 (with battery) 2.17 (without battery)
Number of fibres	Single
Applicable fibres	SM (ITU-T G.652 & G.657) MM (ITU-T G.651) DS (ITU-T G.653) NZDS (ITU-T G.655)
Compatible fibre / cable	0.25~3.0mm Indoor cable (with VFH-40)
Cleaved length	Diameter: 0.125~1mm Cleave length: 8~16mm
Cladding diameter	80~ 150μm
Splicing mode	Max 128 modes
Heating mode	Max 32 modes
Typical splice loss [dB]	SM: 0.02 MM: 0.01 DS: 0.04 NZDS: 0.04 G.657: 0.02 (ITU-T Standard)
Return loss [dB]	≥60
Lighting	3 White LEDs
Splicing time	Auto mode: 8 sec Quick mode: 7 sec
Estimated splice loss	Available
Protection sleeve length	20~60mm
Heating time	FP-03 typical heating time: 13 sec
Results storage	The last 2000 results
Tension test	1.96~2.25N
Operating condition	Operation altitude: 0~5000m Relative humidity: 0~95% Temperature: -10~50°C Max Wind: 15m/s
Storage condition	Relative humidity: 0~95% Temperature: -40~80°C
Display	90° bi-directional view 5.0" Color High Resolution Display
Fibre view & magnification	X, Y, XY, X/Y: 520 Magnification
Power supply	AC input 100-240V DC input 9-14V
Battery capacity	9000mAh battery capacity, typical 335 times (Splice+Heat)
Operating methods	Buttons, touch screen
Automatic calibration	Automatic arc calibration by air pressure and temperature
Electrode life	3500 arcs, can be extended by using an electrode grinder
Terminal	USB 2.0 Mini USB

Package

	Model	Qty.
Fusion splicer	View 7	1
High precision cleaver	V7+	1
Fibre holders	FH-10 (equipped) FH-40 (included in set)	1 pair 1 pair
SOC holders	FH-SOC/FH-SC (SOC splicing holder) + SOC heater holder	1 set
AC adapter	JS-180300	1
Cooling tray	CG-22	1
Additional pair of electrodes	E-50/E-27	1 pair
Battery pack	LBT-30 (9000mAh)	1
Additional compatible batteries	LBT-20 (9800mAh)	0
Power cable	ACC-25	1
Carrying case	NBX-35	1
Cigarette lighter cable	CJ-11	1
Electrode grinder	EG-18	1

Extended 3-year warranty period is only for a fusion splicer itself, for other package elements like cleaver and battery there is a 1-year warranty period

Discounts, which are counted automatically on the entire store offer, aren't entitled for fusion splicers, in their full value

More Information

More Information
Producent	INNO Instrument
Czas spawania [s]	7s
Czas zgrzewania [s]	13s
Ilość silników wyrównujących	6 sztuk
Maksymalne powiększenie	520x
Pojemność baterii [mAh]	9000mAh
Rodzaj centrowania	Centrowanie do rdzenia
Rozmiar wyświetlacza ["]	5.0"
Średnia strata spawu [dB]	0.01dB
