Ubiquiti UCG-Fiber 10G Cloud Gateway

Ubiquiti UCG-Fiber Cloud Gateway Fiber is a high-performance UniFi Cloud Gateway designed to manage extensive network infrastructures in small and medium-sized businesses, offices, and modern IT environments. The device supports management of more than 50 UniFi devices and more than 500 concurrent users, while providing IDS/IPS throughput of up to 5 Gbps.

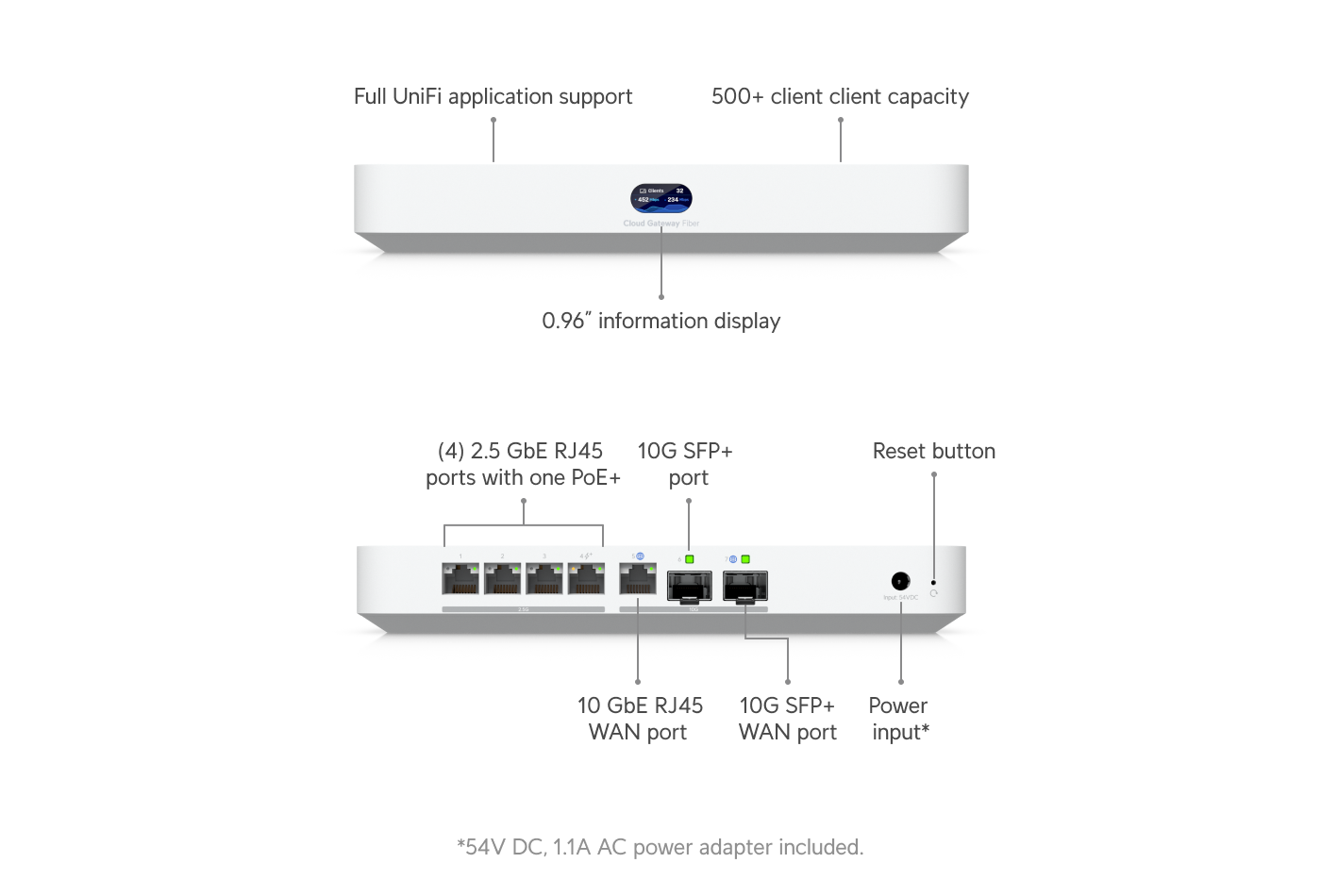

Cloud Gateway Fiber offers a flexible set of high-speed network interfaces: 2× 10G SFP+ ports, 1× 10 GbE RJ45 port, and 4× 2.5 GbE RJ45 ports. The default WAN configuration includes the 10G SFP+ and 10 GbE RJ45 ports, allowing the use of high-speed fiber-optic and copper connections.

The UCG-Fiber is equipped with an extensive range of network security features, including a stateful firewall, Layer 7 application firewall, traffic identification and DPI, content filtering, and IDS/IPS protection. Traffic can also be segmented based on VLANs and subnets, with advanced zone-based filtering by regions, domains, and applications. With the CyberSecure system, the device supports more than 55,000 IDS/IPS signatures.

The gateway supports SD-WAN with no additional licenses as well as VPN solutions for communication between sites and secure remote access. Available options include Site Magic, IPsec, OpenVPN, and WireGuard, as well as Teleport Zero-Configuration VPN. The UCG-Fiber can also operate as a VPN server or client.

The Ubiquiti UCG-Fiber offers Multi-WAN Load Balancing, advanced QoS, dynamic OSPF and BGP routing, mDNS, and advanced NAT mechanisms. The device also features an integrated RADIUS server, support for RADIUS over TLS (RadSec), and compatibility with a backup UniFi LTE Backup Internet connection.

The compact desktop enclosure measures 212.8 × 127.6 × 30 mm, making it easy to place on a desk or in a space-constrained installation. Performance is provided by a quad-core ARM Cortex-A73 2.2 GHz processor and 3 GB of system memory. The UCG-Fiber also features a 0.96-inch LCM status display and supports management via Ethernet and Bluetooth.

The device provides a 30 W PoE budget, enabling it to power compatible network devices. An optional NVMe SSD with a capacity of up to 2 TB can be used to support NVR functionality.

Key features:

• Management of more than 50 UniFi devices and support for more than 500 concurrent users
• IDS/IPS throughput of up to 5 Gbps for effective network protection at high throughput
• 2× 10G SFP+ - support for 10 Gbps connections via fiber-optic interfaces
• 1× 10 GbE RJ45 - high-speed Ethernet connection supporting 10/2.5/1 Gbps
• 4× 2.5 GbE RJ45 - multigigabit Ethernet interfaces supporting 2.5/1/100/10 Mbps
• 10G WAN - simultaneous use of the 10G SFP+ and 10 GbE RJ45 ports as default WAN interfaces
• Advanced security - Stateful Firewall, Layer 7 firewall, DPI, content filtering, Ad Blocking, and IDS/IPS
• 55,000+ IDS/IPS signatures with the CyberSecure system
• VLAN/subnet traffic segmentation and advanced zone-based filtering
• SD-WAN with no additional licenses and Site Magic for creating Site-to-Site VPN connections
• Support for IPsec, OpenVPN, and WireGuard, as well as Teleport Zero-Configuration VPN
• Multi-WAN Load Balancing, advanced QoS, and dynamic OSPF and BGP routing
• Integrated RADIUS server and support for RADIUS over TLS (RadSec)
• Support for UniFi Network, Protect, Access, Talk, and Connect applications
• 30 W PoE budget for powering compatible devices
• Support for an NVMe SSD of up to 2 TB for NVR functionality
• Quad-core ARM Cortex-A73 2.2 GHz processor and 3 GB of system memory
• Compact enclosure measuring 212.8 × 127.6 × 30 mm
• Built-in 0.96-inch LCM status display
• Management via Ethernet and Bluetooth.
