Ubiquiti UniFi Switch USW-FLEX-MINI 5x GE PoE

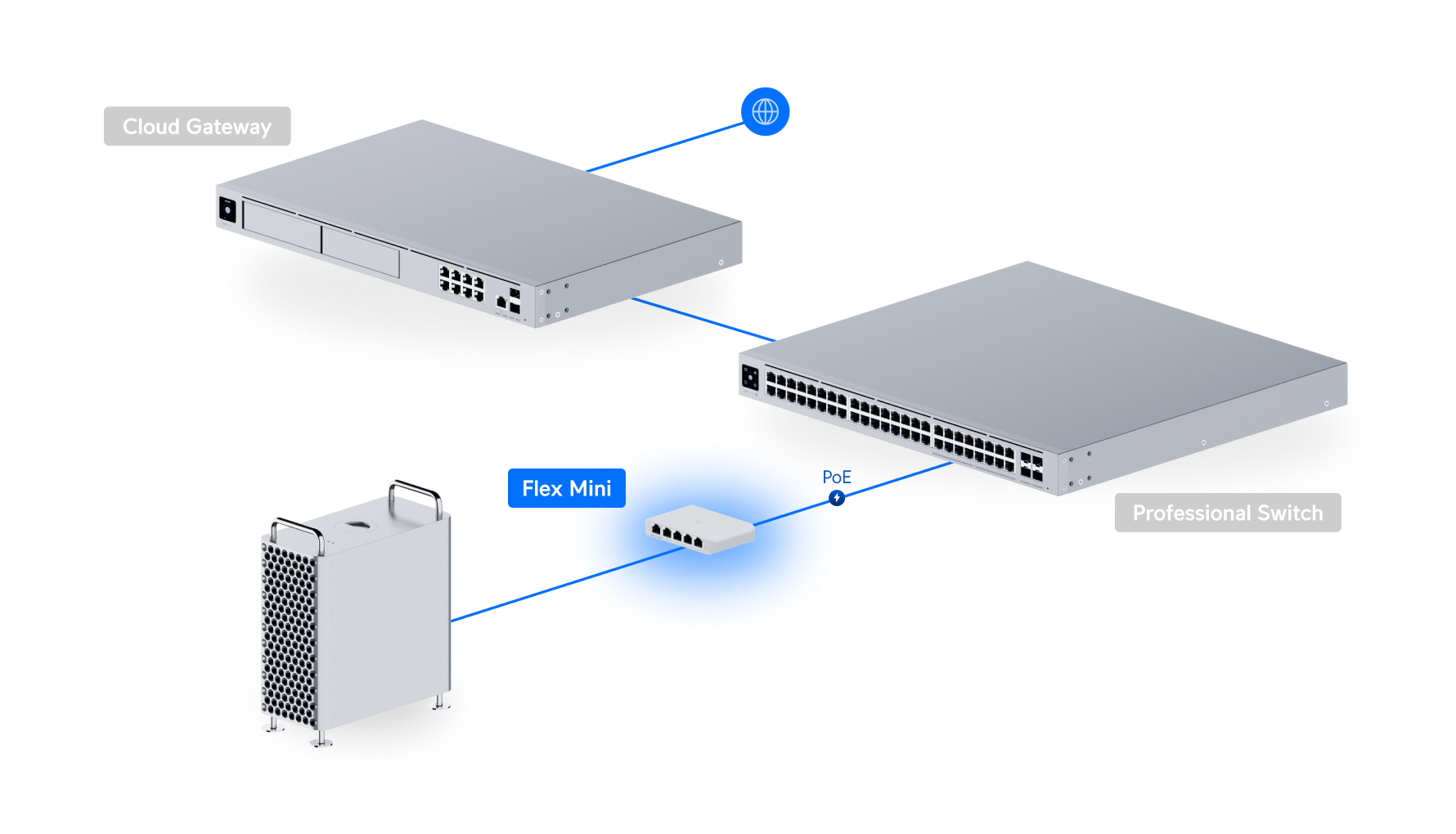

Ubiquiti UniFi Switch Flex Mini (USW-Flex-Mini) is a managed Gigabit Ethernet switch equipped with 5 × 10/100/1000 Mbps RJ45 ports. The device is designed to expand UniFi networks in small and medium-sized installations where compact dimensions, easy management, and low power consumption are important.

The first switch port supports 802.3af/at PoE input power, allowing the USW-Flex-Mini to be powered directly from a compatible PoE device. Alternatively, the switch can be powered via USB Type-C 5 V DC - a power supply is included with the device.

The USW-Flex-Mini offers 10 Gbps switching capacity, 5 Gbps total non-blocking throughput, and a packet forwarding rate of up to 7 Mpps. It also supports Layer 2 features such as VLAN, port isolation, port mirroring, flow control, storm control, multicast/broadcast traffic limiting, and jumbo frames.

The switch can be managed via UniFi Network, allowing the device to be configured and monitored through the unified UniFi management environment. Its compact enclosure, measuring approximately 107 × 70 × 21 mm, and maximum power consumption of just 2.5 W make the device well suited for locations where space and energy consumption are limited.

Key features:

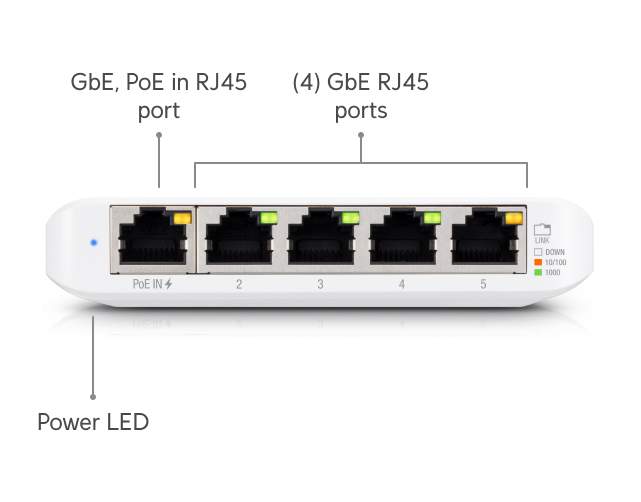

• 5× Gigabit Ethernet RJ45 10/100/1000 Mbps
• 1× port with 802.3af/at PoE input

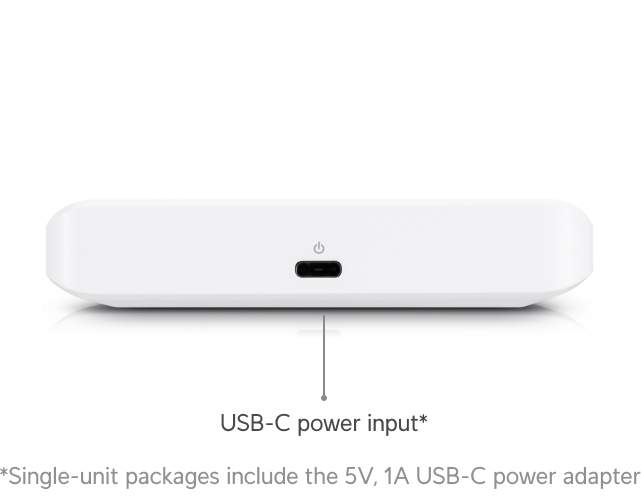

• Power via 802.3af/at PoE or USB Type-C 5 V DC
• Switching capacity: 10 Gbps
• Non-blocking throughput: 5 Gbps
• Packet forwarding rate: 7 Mpps
• VLAN support for up to 1000 networks
• MAC address table: 2000 entries
• Layer 2 features: port isolation, port mirroring, flow control, storm control
• Jumbo Frame support
• Management via UniFi Network
• Maximum power consumption: 2.5 W
• Compact desktop design
• ESD protection: ±16 kV air / ±12 kV contact
• Operating temperature: -5°C to 45°C

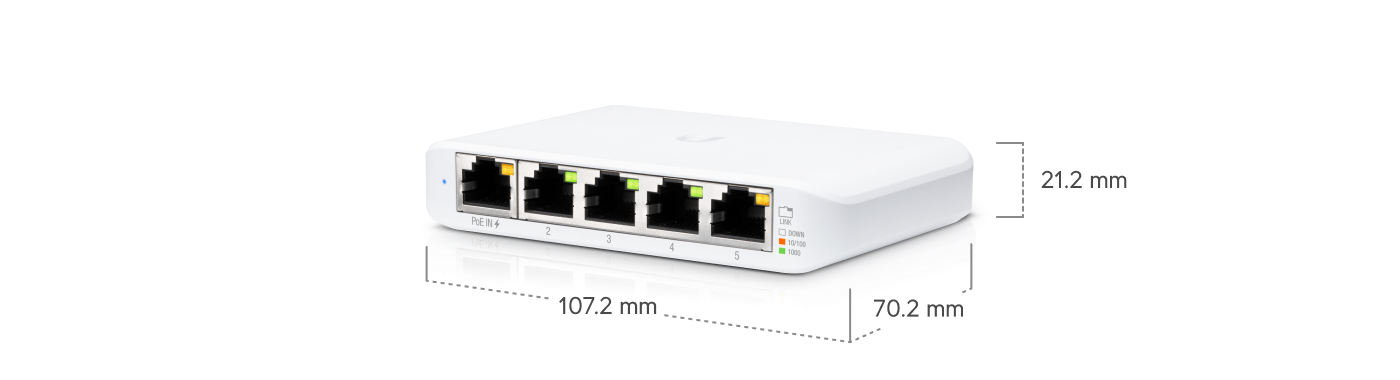

• Dimensions: approximately 107 × 70 × 21 mm
• Weight: 150 g
• Certifications: CE, FCC, IC, Anatel.
