Ubiquiti USW-PRO-24-POE switch 16x 10/100/1000 ports PoE+, 8x 10/100/1000 ports PoE++ + 2x SFP+

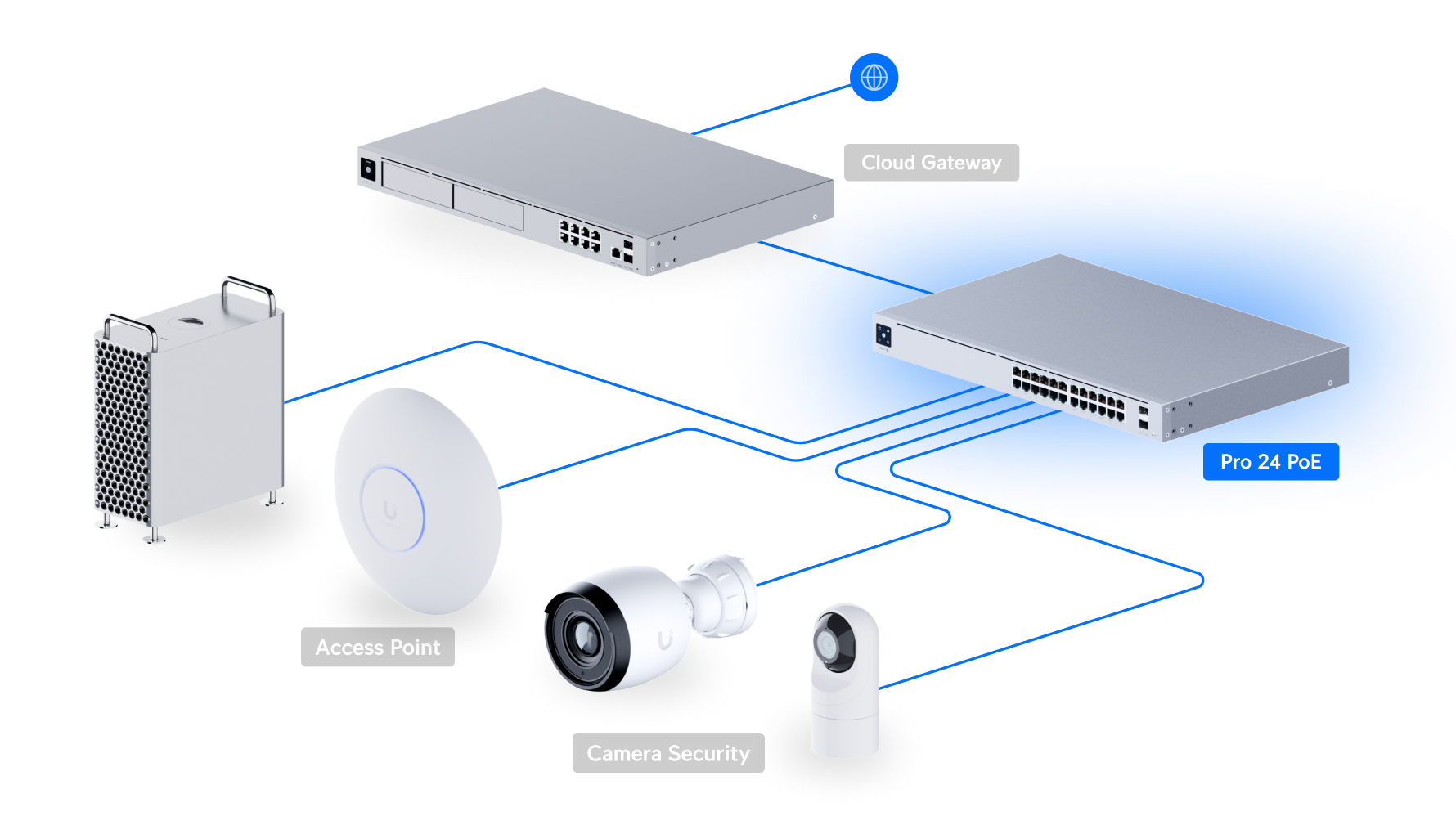

Ubiquiti USW-PRO-24-POE is a manageable UniFi Pro 24 PoE network switch equipped with 24 Gigabit Ethernet ports and 2 10 Gb/s SFP+ ports designed for high-speed uplink connections. The device offers 16 802.3af/at PoE+ ports and 8 802.3bt PoE++ ports, allowing it to power a wide range of network devices such as Wi-Fi access points, IP cameras, VoIP phones, and other PoE-compatible devices.

The switch supports Layer 2 and Layer 3 features, with a total PoE power budget of 400 W. The PoE++ ports can deliver up to 60 W per port, while the PoE+ ports provide up to 30 W per port.

The USW-PRO-24-POE provides 88 Gb/s switching capacity, 44 Gb/s non-blocking throughput, and a packet forwarding rate of up to 65 Mpps. The device is managed through the UniFi Network platform, enabling centralized configuration and monitoring of the network infrastructure.

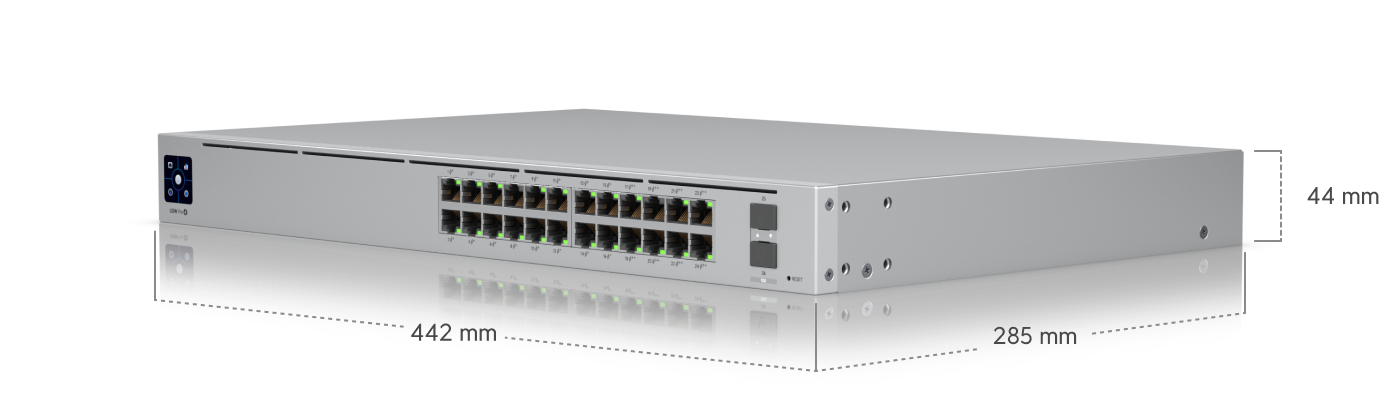

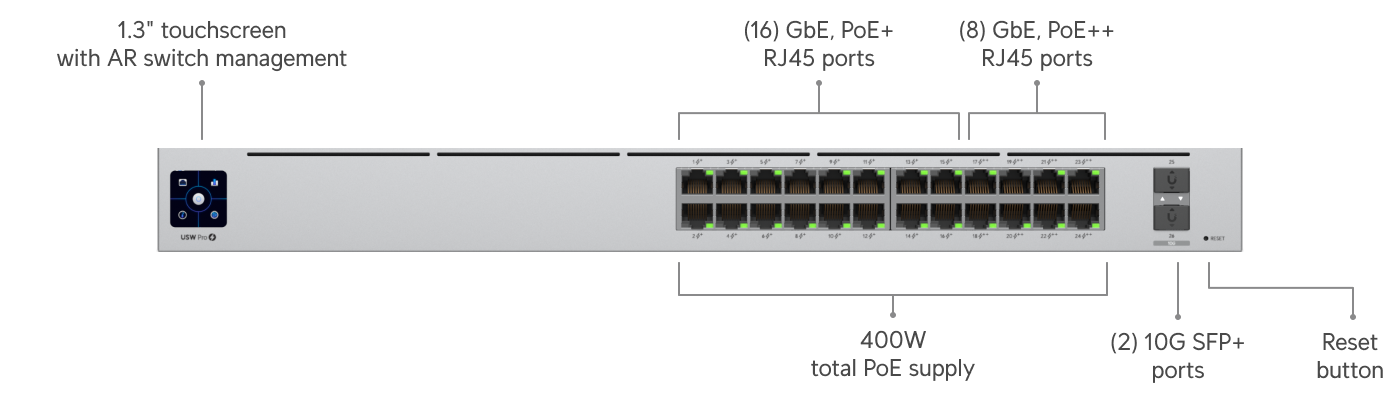

The front panel features a 1.3-inch touchscreen LCM, providing quick access to device information and network status. The switch is designed for installation in 19-inch Rack cabinets and occupies 1U of rack space.

Key features:

• 24x Gigabit Ethernet RJ45 ports, 10/100/1000 Mb/s
• 16x PoE+ ports, 802.3af/at
• 8x PoE++ ports, 802.3bt
• 2x 10 Gb/s SFP+ ports
• PoE power budget: 400 W
• Up to 30 W per port for PoE+
• Up to 60 W per port for PoE++
• Switching capacity: 88 Gb/s
• Non-blocking throughput: 44 Gb/s
• Packet forwarding rate: 65 Mpps
• Layer 2 and Layer 3 support
• VLAN, LACP, STP/RSTP, QoS, and IGMP Snooping support
• Inter-VLAN routing and static routing
• 802.1X, ACL, and device isolation support
• 1.3-inch touchscreen LCM
• Managed via UniFi Network
• 19-inch Rack mounting, 1U height

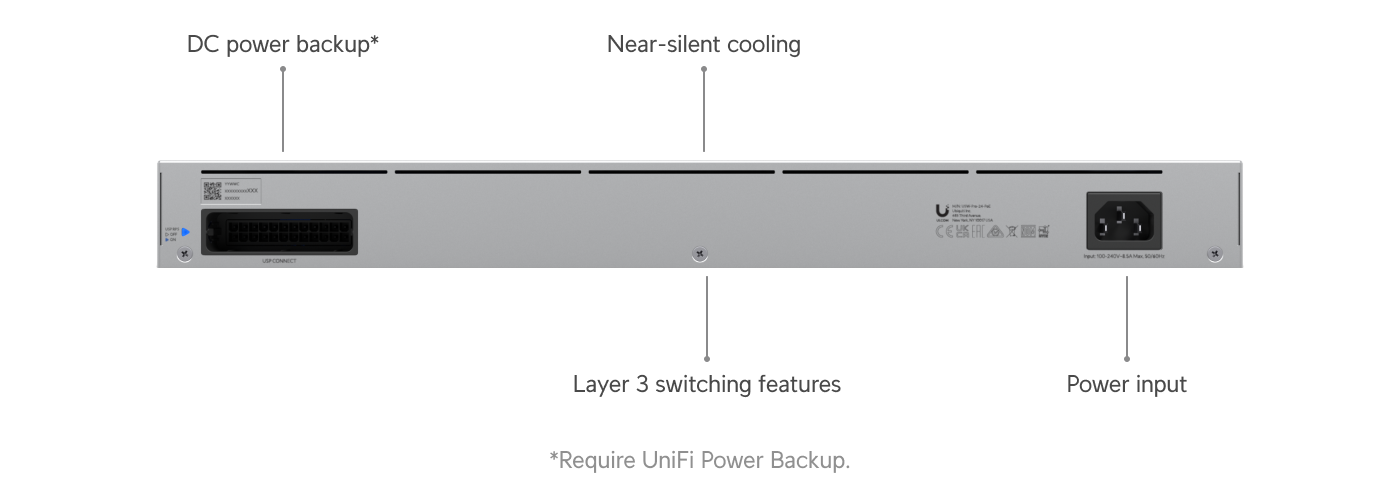

• Internal 450 W power supply
• Optional DC backup power via USP RPS
• Metal housing made of SGCC steel.
