FGX660SP9ED set (ONT XGS-PON + STB + Patchcord SX SC/APC-SC/APC 3 m)
On demand
SKU
FGX660SP9ED
€425.65 net
€523.55 Incl. VAT 23%
The FGX660SP9ED set includes:

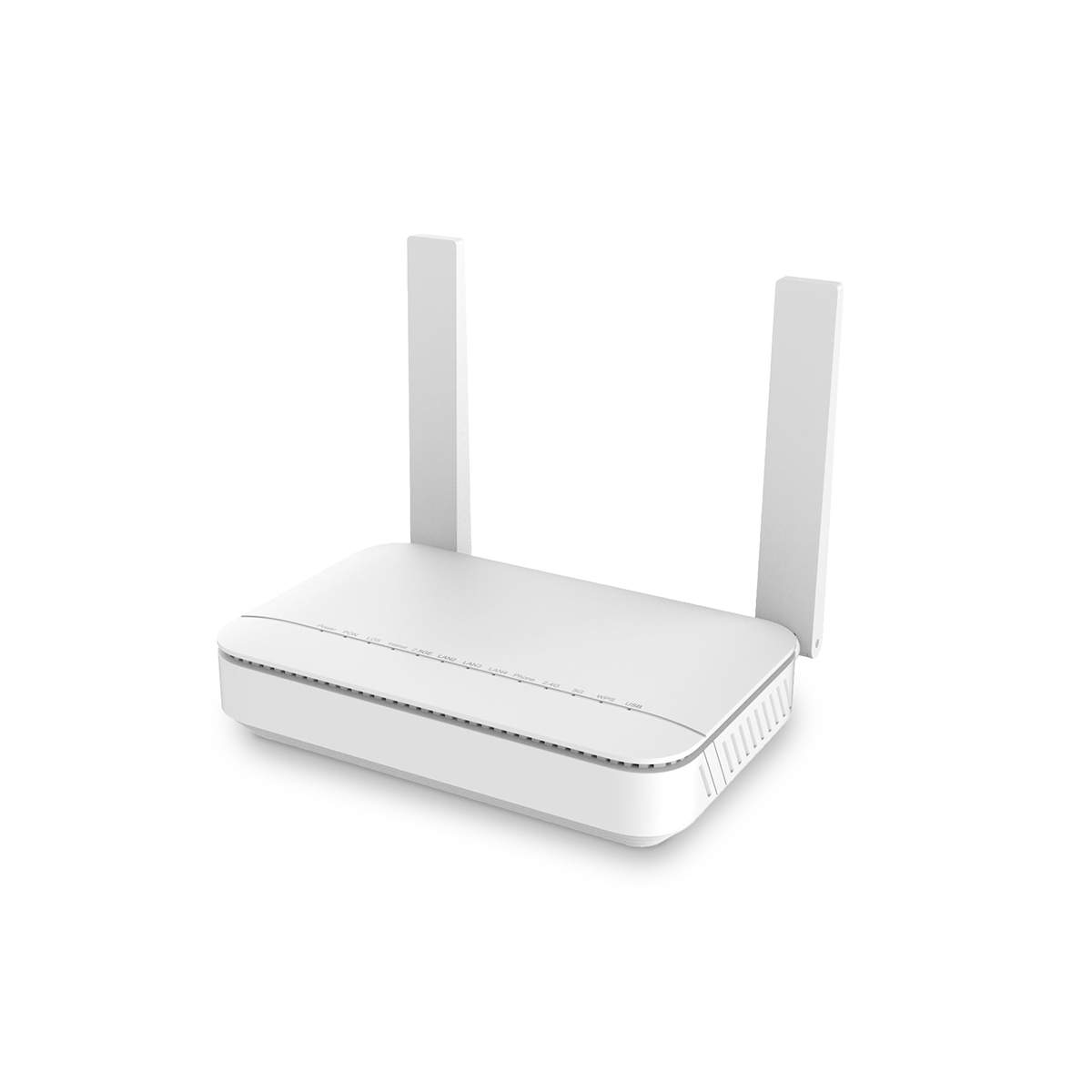

ONT XGS-PON: an optical network terminal (ONT) compliant with ITU-T G.9807 and ITU-T G.988 standards, designed for high-performance home users. It is perfectly suited for FTTH (fiber to the home) scenarios.
On the network side, it supports 9.95328 Gb/s downlink and 9.95328 Gb/s uplink. On the user side, it offers one 2.5GE port, three GE ports, one FXS port and one USB 2.0 port.
Product specifications:
- Power supply: 12 V DC, 1.5 A
- Dimensions: 183 × 117 × 41.5 mm
- Temperatura pracy: 0°C ~ 40°C
- Operating temperature: 5% ~ 95%
(non-condensing) - WAN: XGS-PON
- LAN:
- 1× 2.5GE RJ-45 port
- 3× GE RJ-45 ports
- 1× FXS RJ-11 port
- 1× USB 2.0 port
- 2×2 802.11b/g/n/ax/be Wi-Fi @ 2.4 GHz
- 2×2 802.11a/n/ac/ax/be Wi-Fi @ 5 GHz - Buttons:
- Wi-Fi
- WPS
- Reset
- On/Off - LEDs: Power, PON, LOS, Internet, 2.5GE, LAN2-4,
Phone, 2.4G, 5G, WPS, USB - Antennas: external.
| 2.5GE Speed |
|
| Flexible management |
|
| Top-tier Wi-Fi 7 performance |
|
| VoIP |
|
| Networking features |
|
| QoS |
|
| Security |
|
| Management |
|

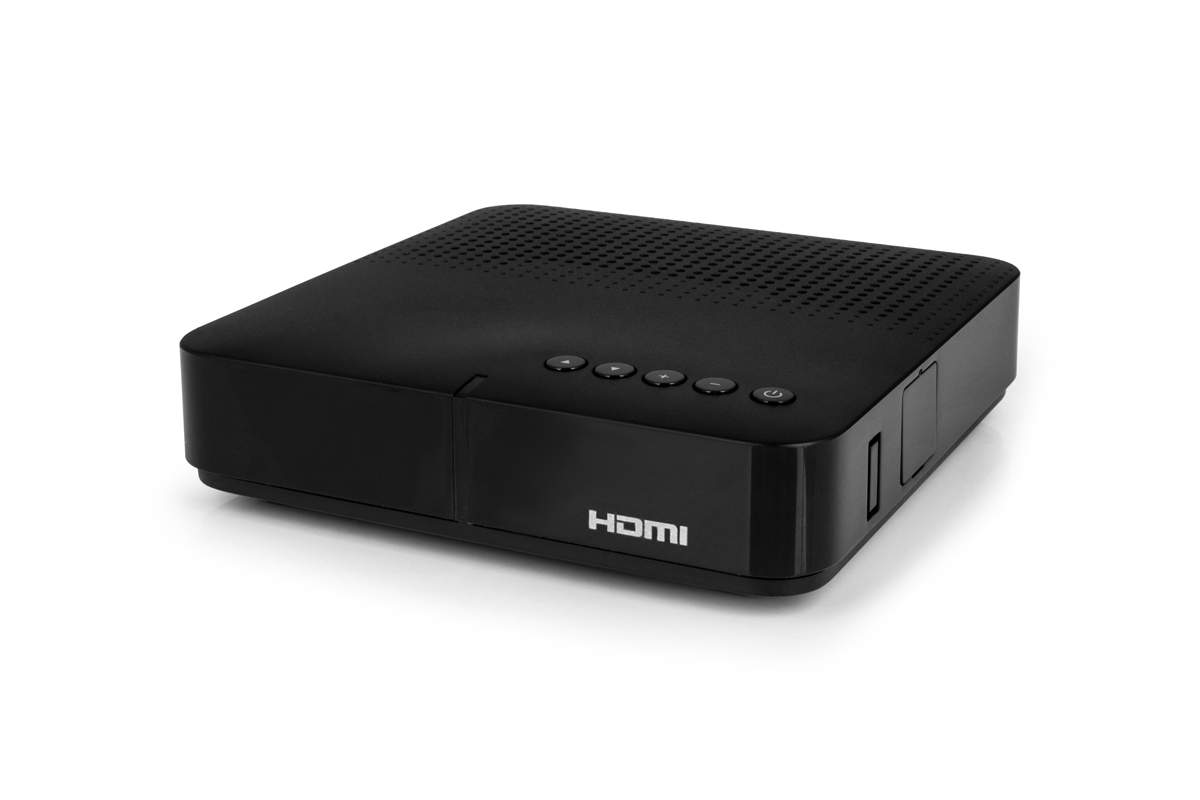

IPTV STB (Set-Top Box) Ultra HD 4K: a set-top box designed for IPTV operators, powered by a high-performance MTK quad-core processor (16000 DMIPS). Equipped with 2 GB DDR4 RAM and 8 GB Flash memory. Supports Ultra HD 4K resolution (3840×2160).
Features HDMI 2.0, Ethernet, and one USB 3.0 port. Includes a built-in Bluetooth 4.2 module.
Product advantages:
- Wide range of features
- Modern design
- Compact size
- Powerful MTK quad-core processor
- Built-in Bluetooth 4.2
- Ultra HD 4K resolution.
| Chipset | UHD 16000DMIPS QUAD Core MTK |
| Video resolution | 480i, 576i, 720p@50, 1080i@60/59.94, 1080p@25, 1080p@30/29.97, 1080p@50, 1080p@60/59.94, 2160p@25, 2160p@30, 2160p@60/50 (4k) |
| Memory | RAM 2 GB, Flash 8 GB |
| Ports | HDMI, USB, Ethernet |
| Supported video formats | MKV, TS, MPG, AVI, FLV, 3GP, MP4, TRP, MOV, VOB, ASF, Xvid |
| Protocols | HLS, MPEG-DASH, Smooth Streaming, UDP unicast, UDP multicast, RTP unicast, RTP multicast |
| CAS/DRM | HDCP 2.3 |
| Video codecs | AV1 Main Profile ,Level 4.1 (FHD), AV1 Main 10,Level 5.x (4K), MPEG-1MPEG-1 MP/HL up to 1080P@60fps, MPEG-2 MP/HL up to 1080P@60fps, MPEG-4 AVC / H.264 [email protected] [email protected], MPEG-4 ASP@L5 up to 1080P@60fps, MPEG4 AVC [email protected] up to 4Kx2K@30fps, HEVC Main 10 profile Level 4.x (FHD), HEVC Main 10 Profile Level 5.x (4K), VC-1 SP/MP/AP up to 1080P@60fps, VP8 up to1080p60, VP9 Profile 2 level 4.1,up tom 1080p60, VP9 Profile-2 up to 4Kx2K@60fps |
| Audio formats | AAC, AAC-HE, AAC-HE V2 Passthrough, Dolby Digital / AC3 Passthrough, FLAC, PCM, Wave |
| Image formats | JPG, PNG, GIF(Up to 1280x720), BMP |

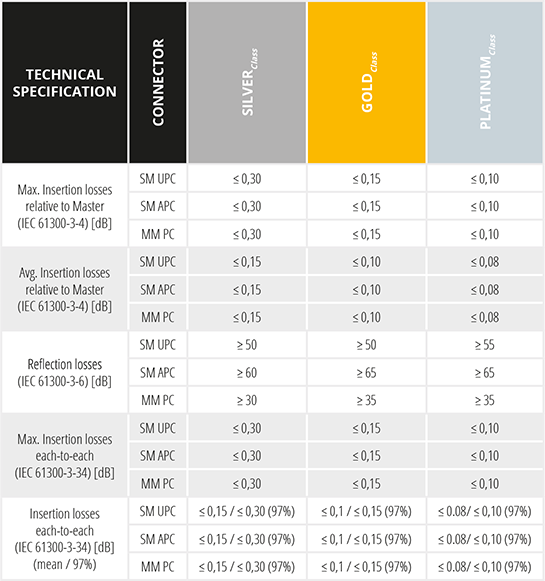

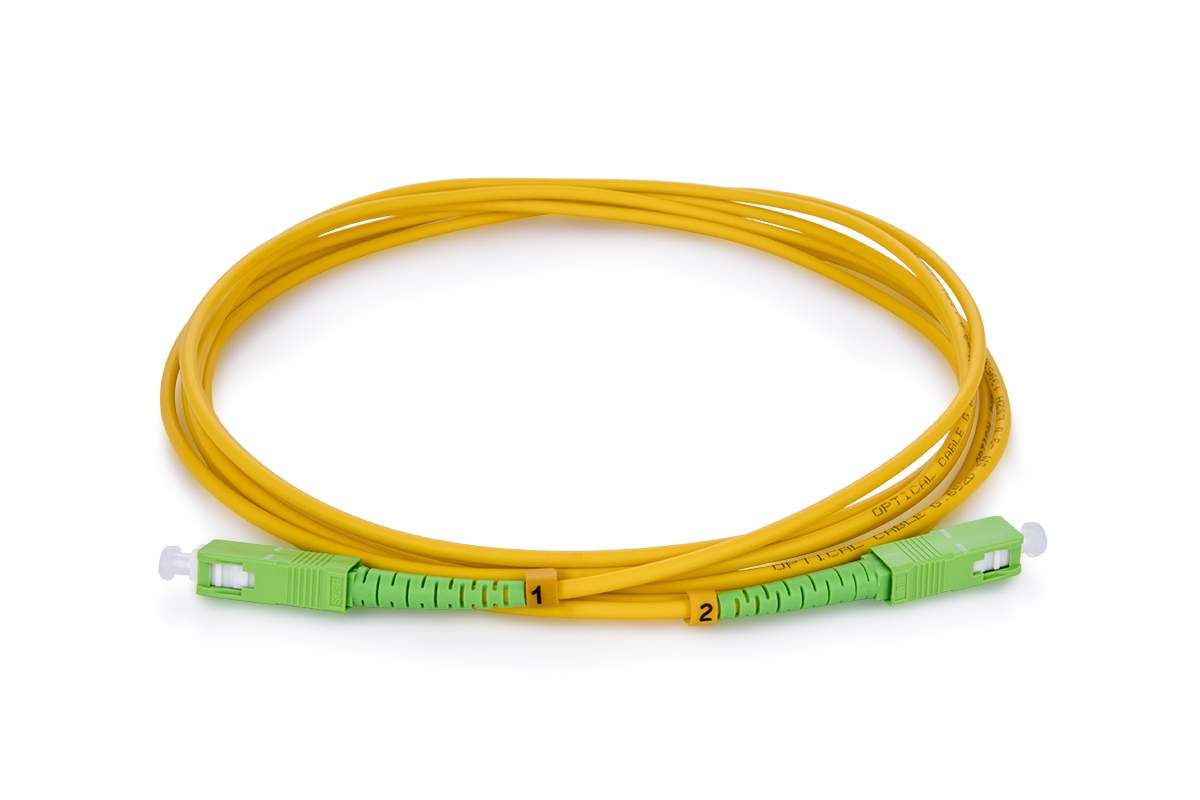

ConnLink GOLD SC/APC-SC/APC G.652D SIMPLEX 3 m 3.0 mm YELLOW LSZH patchcord: a fiber optic patchcord built from high-quality components meeting PREMIUM-class standards, offering excellent optical and transmission performance.
Made in G.652D fiber standard with a minimum bending radius of 30 mm.
The fibers are protected with high-quality LSZH sheathing, ensuring very low smoke and toxic emissions in case of fire.
ConnLink patchcords undergo strict quality control, ensuring years of trouble-free operation.
| Manufacturer | OEM |
|---|
