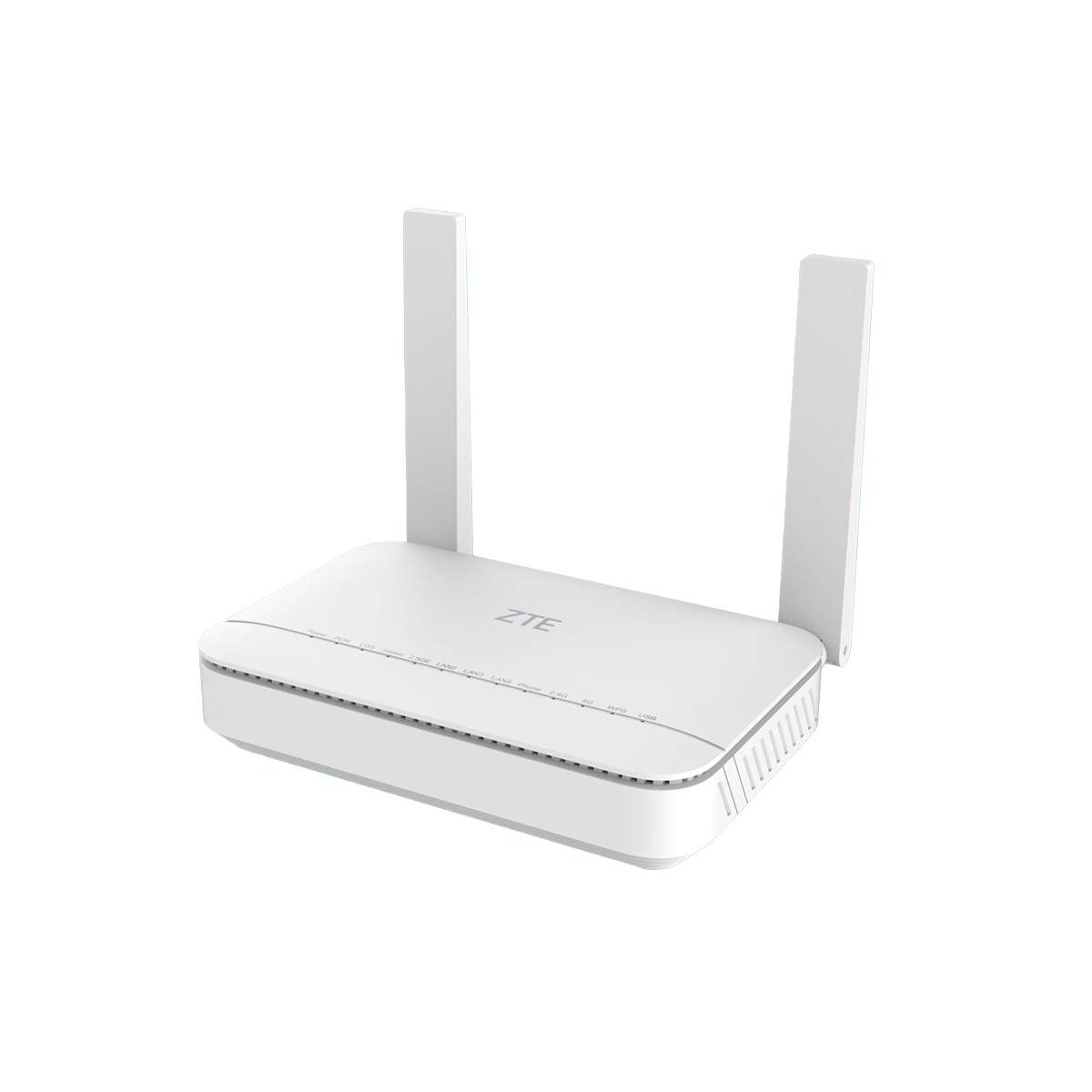

ZTE ZXHN GPON ONT F6705 v3.0 (1x2.5GE 3xGE 1xFX WiFi-BE3600 1xUSB SC/APC )

On demand

SKU

ONU-F6705-V3

€0.00 net €0.00 Incl. VAT 23%

Skip to the beginning of the images gallery

ZTE ZXHN F6705 is a dual-band, gigabit, high-end triple-play GPON gateway. It supports simultaneous dual-band Wi-Fi with speeds of up to 3600 Mb/s. The device is equipped with one 2.5GE LAN port, three GE LAN ports, one phone port, and dual-band Wi-Fi 7 2x2.

Product Specifications:

Power Supply: 12 V DC, 1.5 A
Dimensions: 122 × 183 × 41.5 mm
Operating Temperature: 0°C ~ 40°C
Operating Humidity: 5% ~ 95%
(non-condensing)
WAN: GPON
LAN:
- 1× 2.5GE RJ-45 port
- 3× GE RJ-45 ports
- 1× FXS RJ-11 port
- 1× USB 2.0 port
- 2x2 Wi-Fi 802.11b/g/n/ax/be @ 2.4 GHz
- 2x2 Wi-Fi 802.11a/n/ac/ax/be @ 5 GHz
Buttons:
- Wi-Fi
- WPS
- Reset
- On/Off
LEDs: Power, PON, LOS, Internet, Telefon, 2.5GE, LAN2-4,
WPS, USB, 2.4G, 5G
Antennas: external.

Wi-Fi 7 High Performance	Dual-band Wi-Fi 7 up to 3600 Mb/s 4096-QAM modulation Multi-Link Operation (MLO) Multi-RU mechanism Manual/automatic radio channel selection WPA/WPA2/WPA3 security OMCI / TR-069 for remote management
VoIP	SIP compliant (RFC 3261) DTMF and pulse dialing reception DTMF encryption algorithm (RFC 2833) Codecs: G.711 a/u-law, G.729, G.722 VAD and CNG T.30 and T.38 fax
Networking Features	IPv4/IPv6 dual stack Port mapping / DMZ / virtual server UPnP IGD with NAT traversal support Static and dynamic routing Dynamic DNS relay DHCP client/server IGMP and MLD snooping/proxy
QoS	Flexible packet classification 802.1p and DSCP marking SP/DWRR/SP+DWRR Priority-based queuing Wi-Fi Multimedia (WMM)
Security	Stateful Packet Inspection (SPI) firewall DoS attack protection Multiple VPN pass-through (L2TP / PPTP / IPSec) MAC/IP/URL filtering Service-based access control
Management	TR-069 / OMCI remote management Web GUI Built-in diagnostic tools Logs and statistics Remote upgrade via HTTP

More Information

More Information
Manufacturer	ZTE
