Fibre optic splice closure Tracom SC-F4-D-S-000 024J-01x000000-000
In stock
SKU
TR-FOSC-F
€12.79 net
€15.73 Incl. VAT 23%
The Tracom SC-F4-D-S-000 024J-01x000000-000 inline fiber optic closure is a compact solution designed to protect fiber optic connections in linear and branching installations. Thanks to its flat design, it is ideal for locations with limited installation space, while still providing easy internal access and convenient fiber management.
The enclosure is made of high-quality plastic characterized by high resistance to UV radiation, extreme temperatures (from -40°C to +60°C), and chemical exposure. The IP65 protection rating ensures effective protection against dust and moisture, allowing the closure to be used in aerial, duct, and direct-buried installations.
The model is equipped with four cable entry/exit ports with a mechanical sealing system, enabling quick and hassle-free installation without the need for additional sealing materials. The set includes an integrated splice tray allowing organization of up to 24 splices (12 in standard layout or 24 in double stacking). All metal components are made of corrosion-resistant materials, increasing durability and reliability.
Key features:
- Inline closure with 4 round ports (2× ~16 mm, 2× ~13 mm)
- Capacity up to 24 splices (1 tray 12/24J)
- Mechanical port sealing
- Protection rating: IP65
- UV, temperature, and chemical resistance
- Compact, flat design
- Screw-mounted installation.
| Dimensions | 210 × 205 × 50 mm |
| Number of ports | 4 |
| Number of trays | 1 |
| Tray type | Dedicated splice area |
| Adapter slots | None |
| Basket | None |

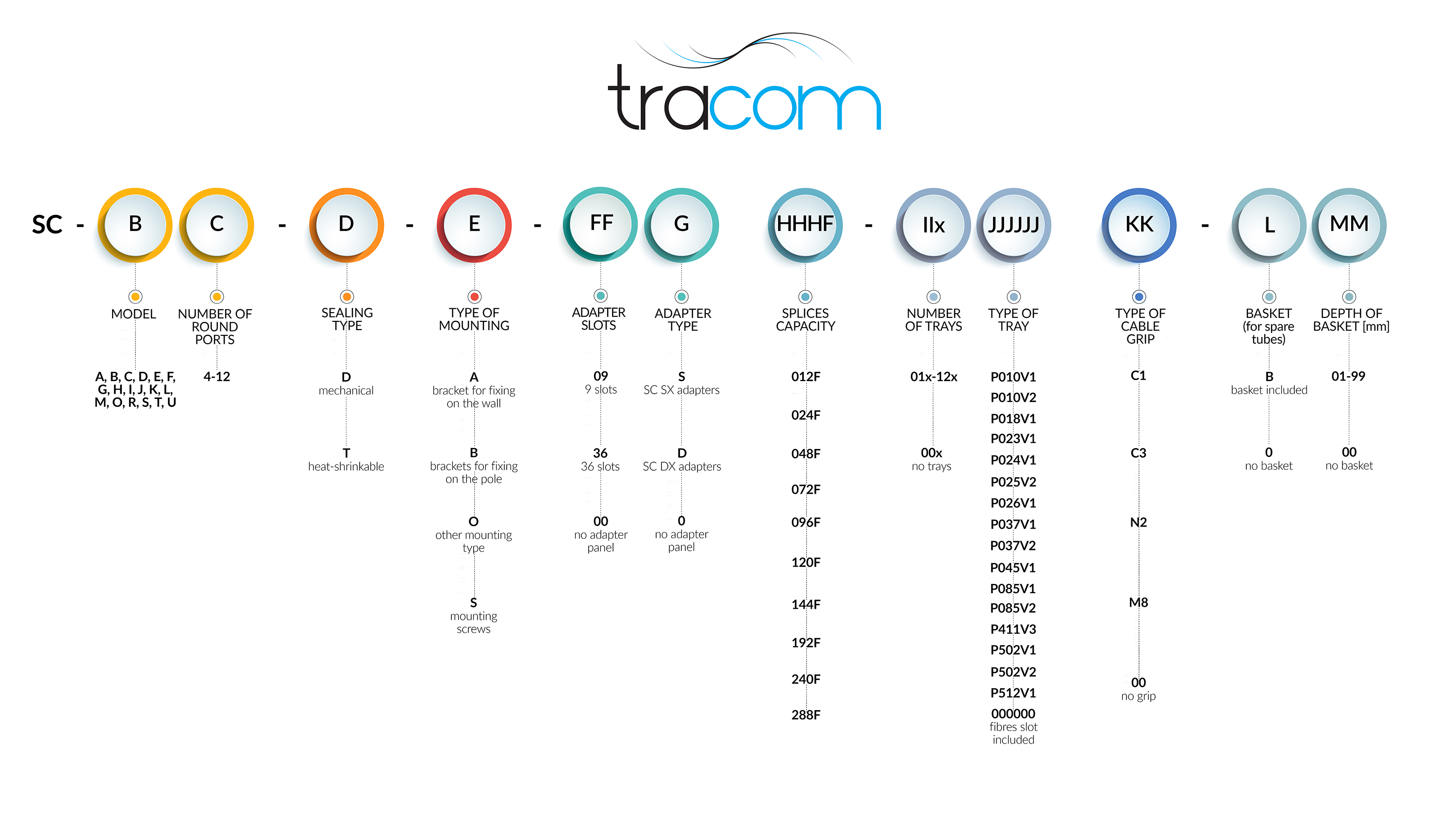

Tracom series fiber optic closures naming scheme
Complete set includes:
- Integrated splice tray (12/24 splices)
- Allen key
- Splice protection sleeves
- Mechanical port seals
- Cable ties.
Shipping information:
- Quantity per master carton: 20 pcs
- Maximum quantity per UPS shipment: 20 pcs.
