Fibre optic splice closure Tracom SC-D4-D-B-000 048J-04xP037VX-B13

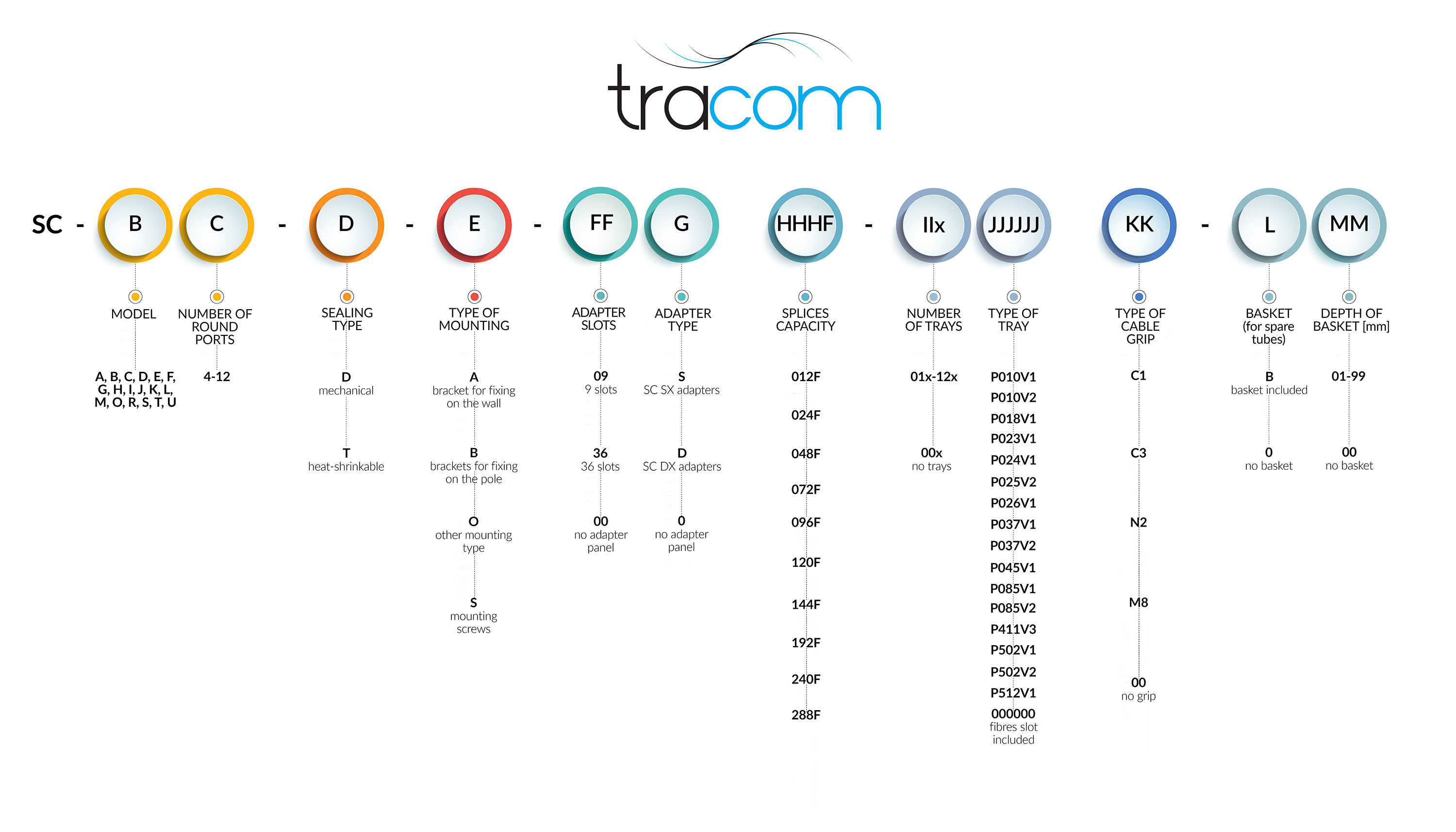

Naming scheme for Tracom series fibre optic splice closures

Tracom series fibre optic splice closures are equipped with fully hermetic, heat-shrinkable or mechanical inlet/outlet ports. These closures are used to protect fiber-optic cable splices and branching applications. Their housing is made of high-quality plastic, resistant to UV radiation, extremely low temperatures (-40°C), high temperatures (+60°C), and chemical exposure, which allows the closures to be used in aerial, duct, and underground installations.
The closures feature IP68 sealing class. They are designed to make installation as simple and efficient as possible. Fiber organization is facilitated by dedicated fiber-optic trays, which can be purchased separately—this solution allows the user to independently decide on their need and quantity.
All metal elements used in the closures are made from corrosion-resistant materials.

Tracom dome splice closures available in our offer:

* Net weight: closure + mounting bracket (without accessories, packaging, or trays).
** With double-layer splice arrangement.

• Bracket for mounting the closure on a pole/other structure
• Cable inlet sealing grommets
• Wrench for the glands
• 45 mm splice protectors
• Protective tubes for fiber distribution
• Self-adhesive protective tape
• Paper labels
• Single-use plastic cable ties (zip ties).

Accessories required (to be purchased separately):

• Tracom P037V-12F fiber-optic tray [2×06F], 1–4 pcs.

Shipping information:

• Quantity in master carton: 6 pcs
• Maximum quantity per UPS courier parcel: 18 pcs
• Maximum quantity on EUR1 pallet: 120 pcs
• Maximum quantity on EUR2 (industrial) pallet: 144 pcs.
