T-DUX 100 Cable Duct Sealing Sleeve
In stock
SKU
REK-USZCZ-T-DUX-100
€30.98 net
€38.11 Incl. VAT 23%

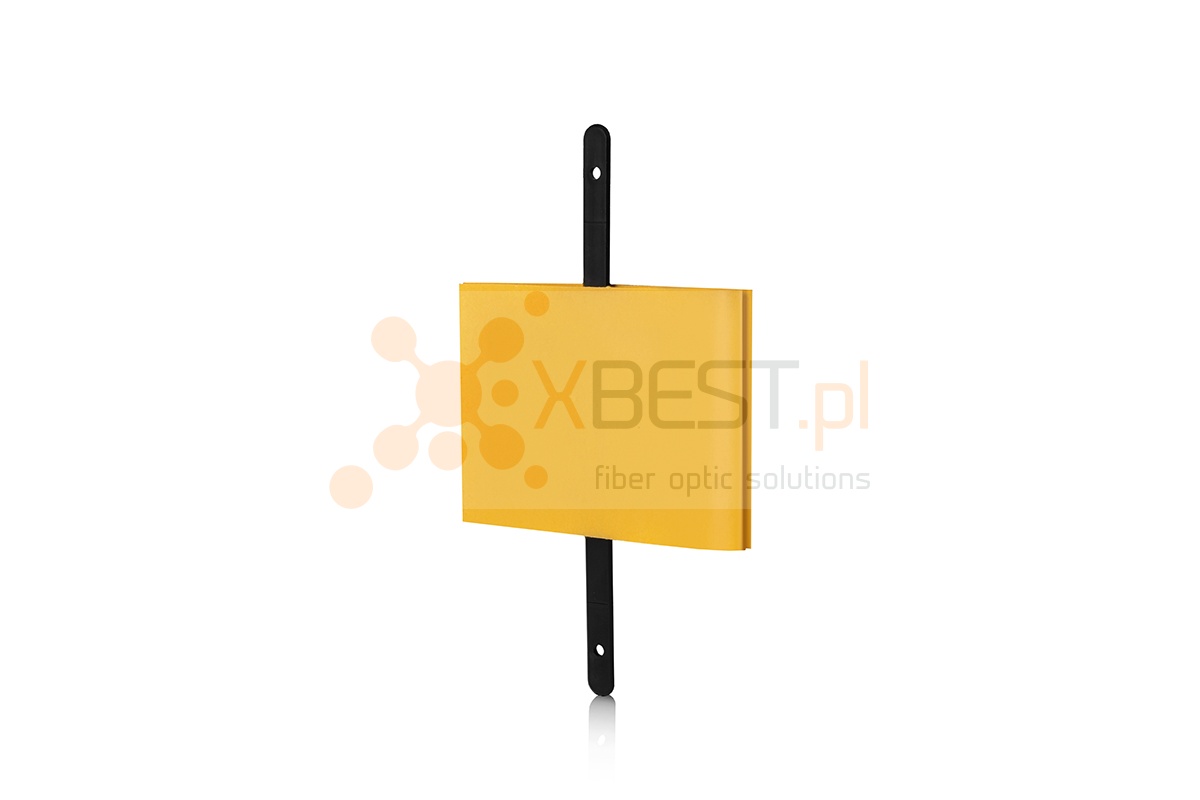

T-DUX is a unique, wrap-around seal for telecommunication cable ducts that, once installed, is filled with neutral CO₂ gas under pressure. It provides long-lasting protection by preventing water from entering cable chambers and manholes through the duct system. The T-DUX system is easy to install and remove, and can be used in ducts and conduits made of plastic, concrete, or steel. It effectively seals ducts containing cables with polyethylene or lead sheaths.
Key features:
- Water- and gas-tight up to 0.5 bar
- Fast and simple installation, even in confined spaces
- Ability to seal cables of different diameters with a single seal size
- Can be installed even when water is flowing out of the duct
- Environmentally friendly, non-toxic, resistant to chemicals and bacteria
- Quick and easy removal
- Wide range of sizes for sealing various types of cable ducts and cables.
T-DUX size selection table
| Internal duct diameter range - diameters of two cables |
External diameter range of a single cable or sum |
|||
| T-DUX seals | min. [mm] |
max. [mm] |
for duct diameter min. [mm] |
for duct diameter max. [mm] |
| T-DUX 35 | 25 | 35 | 0-12 | 0-25 |
| T-DUX 45 | 32.5 | 45 | 0-14 | 0-32 |
| T-DUX 60 | 45 | 60 | 0-18 | 0-45 |
| T-DUX 75 | 55 | 75 | 0-28 | 0-56 |
| T-DUX 90 | 60 | 100 | 0-22 | 0-83 |
| T-DUX 100 | 75 | 110 | 0-45 | 0-90 |
| T-DUX 125 | 110 | 125 | 0-83 | 0-103 |
| Manufacturer | OEM |
|---|
