T-DUX CL-60 for sealing more than two cables in a duct
On demand
SKU
SPINKA-T-DUX-CL-60
€0.00 net
€0.00 Incl. VAT 23%

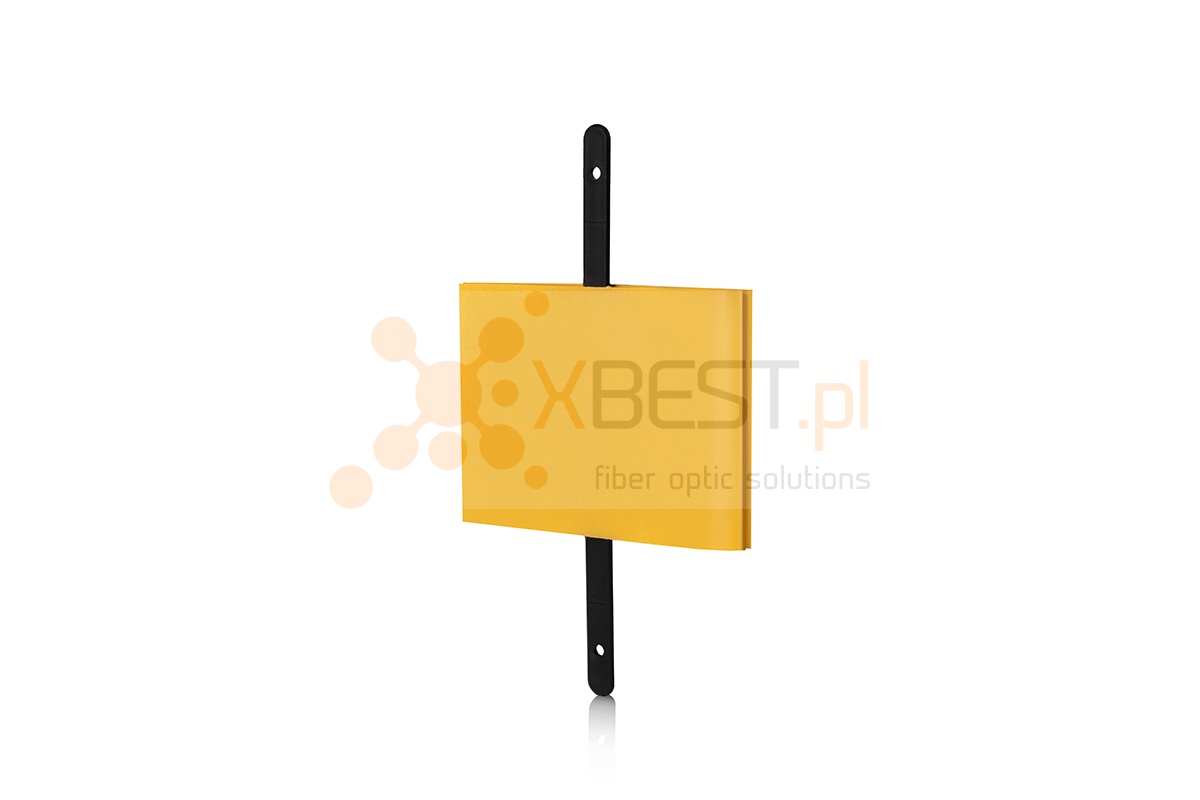

T-DUX CL sealing clips are part of the cable duct sealing system used together with the T-DUX sleeve in situations where more than two cables are installed in the conduit. To seal three or more cables, the effective diameter of the cable bundle must be calculated. To determine the maximum diameter of the cable bundle, subtract 5 mm from the maximum cable diameter given in the selection table for each clip used.
One T-DUX CL clip can accommodate up to four cables. If more cables are present, one additional clip is required for every three extra cables.
T-DUX CL clips are not used with T-DUX 35 seals - this size is intended only for empty ducts or for ducts containing a single cable.
T-DUX size selection table
| Internal duct diameter range - diameters of two cables |
External diameter range of a single cable or sum |
|||
| T-DUX seals | min. [mm] |
max. [mm] |
for duct diameter min. [mm] |
for duct diameter max. [mm] |
| T-DUX 35 | 25 | 35 | 0-12 | 0-25 |
| T-DUX 45 | 32.5 | 45 | 0-14 | 0-32 |
| T-DUX 60 | 45 | 60 | 0-18 | 0-45 |
| T-DUX 75 | 55 | 75 | 0-28 | 0-56 |
| T-DUX 90 | 60 | 100 | 0-22 | 0-83 |
| T-DUX 100 | 75 | 110 | 0-45 | 0-90 |
| T-DUX 125 | 110 | 125 | 0-83 | 0-103 |
| Manufacturer | OEM |
|---|
