Fusion Splicer INNO View 3X + V12 cleaver
On demand
SKU
XB-SF-VIEW3X
€0.00 net
€0.00 Incl. VAT 23%
Fusion Splicer INNO View 3X - Part of the acclaimed View X series, the View 3X is a testament to precision in cladding alignment splicing. Building on the hallmarks of the series, this model is designed with reliability and repeatability in mind. The View 3X ensures efficient fiber positioning and reliable splices every time. For professionals seeking a meticulous and consistent approach to their splicing needs, the View 3X is a trusted companion in the world of fiber optics!
Product features and functions:
- Fiber optic fusion splicer with cladding alignment option,
- Adjustable carrying strap,
- 360× and 520× magnification with high resolution,
- 5.0-inch color touchscreen LCD,
- 5200 mAh battery, allowing up to 300 fusion/splicing cycles,
- Battery status indicated by a 4-level indicator,
- Fusion splicer with live fiber view,
- Independent clamp movement (possibility to replace a single clamp individually),
- Resistance to splashes, dust, and shocks, enabling operation even in harsh conditions.

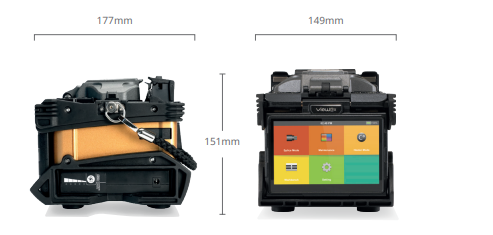

Height: 151 mm
Width: 149 mm
Depth: 177 mm
Weight: 2.19kg
Technical specification
| Model | View 3X |
| Alignment Method | Wyrównanie do płaszcza |
| Number of Fibers | Pojedyncze |
| Applicable Fibers | SM (ITU-T G.652 & G.657) |
| MM (ITU-T G.651) | |
| DS (ITU-T G.653) | |
| NZDS (ITU-T G.655) | |
| Coating Diameter | 100 μm – 3 mm |
| Cladding Diameter | 80 - 150μm |
| Cleave Length | 5 - 16mm |
| Typical Splice Loss | SM: 0.03dB |
| MM: 0.01dB | |
| DS: 0.05dB | |
| NZDS: 0.05dB | |
| G.657: 0.03dB | |
| Return Loss | >> 60 dB |
| Splice Time |
Quick mode: Avg. 4 sec |
| SM mode: Avg. 5 sec | |
| Splice Programs | Max 300 modes |
| Automatic Callibration | Automatic Arc Calibration by air pressure & temperature |
| Electrode Life span | 6000 Arc Discharges |
| Heating Programs | Max 100 modes |
| Heating Time |
Quick: 9s |
| Average: 13s | |
| Protection Sleeve | 20 mm – 60 mm |
| Data Output | Cloud (View Pro Manager) + USB-C |
| Splice Memory | 20 000 Splice data |
| 10 000 Splice image | |
| Battery | Battery Capacity: 5200mAh |
| Operation Cycle: 300 cycles (Splicing + Heating) | |
| Monitor | 5.0” Color LCD display |
| Full Touch Screen | |
| Magnification | x360, x520 |
| Size | 151 x 149 x 177mm |
| Pull Test | 1.96 - 2.25N |
Zawartość zestawu
| Model | Ilość | |
| Fusion Splicer | VIEW 3X | 1 |
| Cleaver | V12 | 1 |
| SOC Holder | FH-SOC-R | 1 pair |
| SOC Heater Cover | HTS-SOC-06 | 1 pair |
| AC Adaptor | JS-180300 | 1 |
| Cooling tray | CG-25 | 1 |
| Electrodes | E-50 | 1 pair |
| Battery Pack | LBT-52 | 1 |
| Power Cable | ACC-25 | 1 |
| Carrying Case | ICC-55 | 1 |
| USB Cable |
USB-8P USB-9P |
1 |
Brochure:
Certificate:
| Manufacturer | INNO Instrument |
|---|---|
| Czas spawania | 4 s |
| Czas zgrzewania | 9 s |
| Maksymalne powiększenie | 520x |
| Pojemność baterii | 5200 mAh |
| Rodzaj centrowania | Centrowanie do płaszcza |
| Rozmiar wyświetlacza | 5.0" |
| Średnia strata spawu | 0.03 dB |
