Fusion Splicer INNO View 8X + V12 cleaver
On demand
SKU
XB-SF-VIEW8X-V12
€4,555.90 net
€5,603.76 Incl. VAT 23%
INNO View 8X
The View 8X model, combining the unique features of the highly regarded View X series, is synonymous with innovation in welding. The device is equipped with IoT and GPS modules, providing state-of-the-art connectivity technology and enhanced security. Suitable for both large-scale operations and precise, detailed work, the View 8X delivers unmatched accuracy. As a perfect example of our commitment to integrating smart technology into the welding process, this model is both versatile and reliable. For those looking for the epitome of excellence in fiber welding, the View 8X is the best choice!
| SPECIFICATION | ||
| Model | VIEW 8X | |
| Alignment method | Core alignment | |
| Number of fibers | Single | |
| Supported fibers | SM (ITU-T G.652 & G.657) / MM (ITU-T G.651) / DS (ITU-T G.653) / NZDS (ITU-T G.655) | |
| Coating diameter | 100μm - 3mm | |
| Cladding diameter | 80 - 150μm | |
| Cleaved length | 5 - 16mm | |
| Typical splice loss | SM: 0.01dB / MM: 0.01dB / DS: 0.03dB / NZDS: 0.03dB / G.657: 0.01dB | |
| Return loss | > 60dB | |
| Splicing time | Fast mode: Avg. 4 sec / SM mode: Avg. 5 sec / Auto mode: Avg. 7 sec | |
| Splicing programs | Max. 128 modes | |
| Auto calibration | Auto ARC calibration based on air pressure and temperature | |
| Electrode life | 6000 arc discharges | |
| Heating programs | Max. 32 modes | |
| Heating time | Fast mode: 9s / Avg: 13s | |
| Protection sleeve | 20mm - 60mm | |
| Data output | Cloud (View Pro Manager) + USB-C | |
| Splice memory | 20,000 splice data / 10,000 splice images | |
| Battery | Battery capacity: 9000mAh / Operating cycle: 500 cycles (splicing + heating) | |
| Power supply | AC input: 100 - 240V, DC input: 9 - 19V | |
| Monitor | 5.0” color LCD touchscreen | |
| Magnification | x360, x520 | |

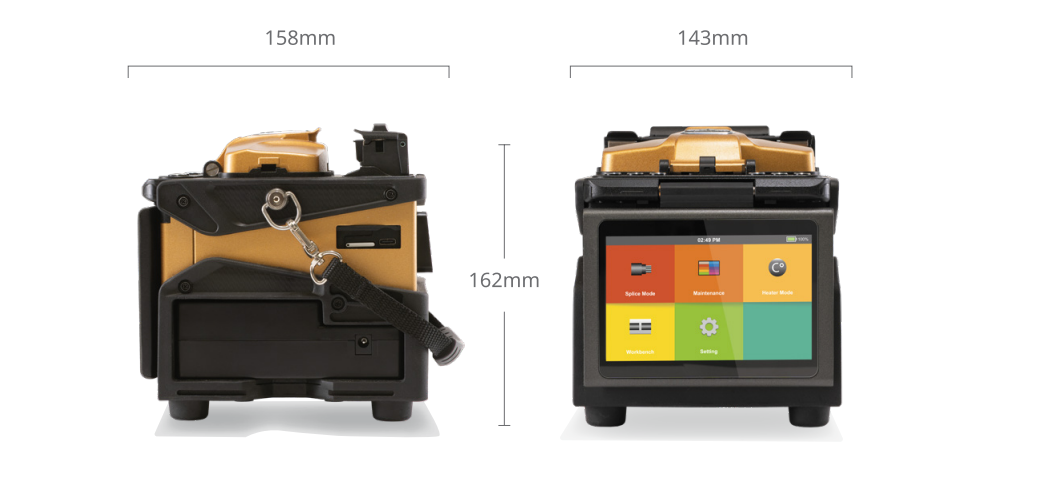

| Dimensions | 162 x 143 x 158mm | |
| Weight | 2.68kg | |
| Tensile test | 1.96 - 2.25N | |
| Set contents | Splicer, case + work tray, case strap, splicer strap, FH-40 holders, LBT-30 9000mAh battery, V12 cleaver (screwdriver + brush), plate (cooling tray model: CG-25), pair of E-70 electrodes, 19V power adapter + EU cable, SOC holder set, USB cable (male USB A - male USB C), USB cable (female USB A - male USB C), user manual, SIM card port needle | |
| Producent | INNO Instrument |
|---|---|
| Czas spawania [s] | 4s |
| Czas zgrzewania [s] | 9s |
| Maksymalne powiększenie | 520x |
| Pojemność baterii [mAh] | 9000mAh |
| Rodzaj centrowania | Centrowanie do rdzenia |
| Rozmiar wyświetlacza ["] | 5.0" |
| Średnia strata spawu [dB] | 0.01dB |
