Fusion Splicer INNO M9 + V1 cleaver
In stock
SKU
XB-SF-M9-V1
€0.00 net
€0.00 Incl. VAT 23%
INNO M9 Fiber Optic Fusion Splicer
The INNO M9, a core-centering fiber optic splicer with an ultra-portable design, is the most powerful fiber optic splicer on the market. This compact and advanced fiber optic splicer inherits many of the outstanding features of its sister products. The M9's 4.3-inch, high-resolution color LCD touchscreen with a user-friendly, intuitive graphical user interface (GUI) offers users large, clear fiber images. Double-tapping the screen allows users to zoom in/out up to 400 times, allowing them to inspect the fiber optic cable with crisp images. The M9's adjustable belt clip allows users to customize their workstation to their needs.
The INNO M9 splicer comes with the INNO V1 fiber cutter (guillotine), among other features.
| SPECIFICATIONS | |
|---|---|
| Model | M9 |
| Alignment Method | Core Alignment |
| Fiber Count | Single |
| Supported Fibers | SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655) |
| Cladding Diameter | 100μm - 3mm |
| Cladding Diameter | 80 - 150μm |
| Clean Length | 10 - 16mm |
| Typical Splice Loss | SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB |
| Return Loss | >>60dB |
| Splice Time | Fast Mode: Average 7 sec / Auto Mode: Average 9 sec |
| Automatic Calibration | Automatic Calibration ARC by air pressure and temperature |
| Electrode life | 5500 arc discharges |
| Heating time | 13 s (45 mm, slim 60 mm) / 15 s (60 mm shield) |
| Splice shield length | 20mm - 60mm |
| Pamięć spawów | 10 000 |
| Bateria | Cykl pracy: 200 cykli (spawanie + nagrzewanie) |
| Zasilanie | AC 100-240V, DC 9-14V |
| Monitor | 4.3” kolorowy wyświetlacz LCD, pełny ekran dotykowy |
| Powiększenie | x400 |

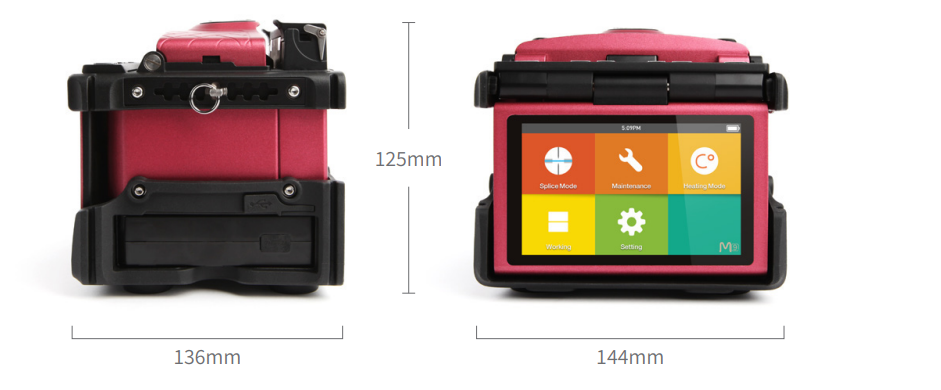

| Wymiary | 125 x 144 x 136mm |
| Waga | 1.67kg |
| Test wytrzymałości | 1.96 - 2.25N |
| Zawartość zestawu | Fiber Count: Single Supported Fibers: SM (G.652 & G.657), MM (G.651), DS (G.653), NZDS (G.655) Cladding Diameter: 100μm - 3mm Cladding Diameter: 80 - 150μm Clean Length: 10 - 16mm Typical Splice Loss: SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB Return Loss: >>60dB Splice Time: Fast Mode: Average 7 sec / Auto Mode: Average 9 sec Automatic Calibration: Automatic Calibration ARC by air pressure and temperature Electrode life: 5500 arc discharges Heating time: 13 s (45 mm, slim 60 mm) / 15 s (60 mm shield) Splice shield length: 20 mm - 60 mm Splice memory: 10,000 Battery: Duty cycle: 200 cycles (welding + heating) Power supply: AC 100-240 V, DC 9-14 V Monitor: 4.3” color LCD, full touchscreen Magnification: 400 x Dimensions: 125 x 144 x 136 mm Weight: 1.67 kg Strength test: 1.96 - 2.25 N Kit contents: INNO M9 splicer, INNO V1 cutter, fiber optic collector, FH-40 fiber optic holder, heater shield SOC HTN-SOC, AC Adapter JS-1618, Cooling Tray CG-22, Electrodes E-50, Battery LBT-3000, Power Cable ACC-25, USB Cable, Carrying Case |
| Producent | INNO Instrument |
|---|---|
| Czas spawania [s] | 7s |
| Czas zgrzewania [s] | 13s |
| Maksymalne powiększenie | 400x |
| Rodzaj centrowania | Centrowanie do rdzenia |
| Rozmiar wyświetlacza ["] | 4.3" |
| Średnia strata spawu [dB] | 0.01dB |
